Nyan Robotics 2015 - Jarvis

Throughout the season

Click a picture to enlarge it

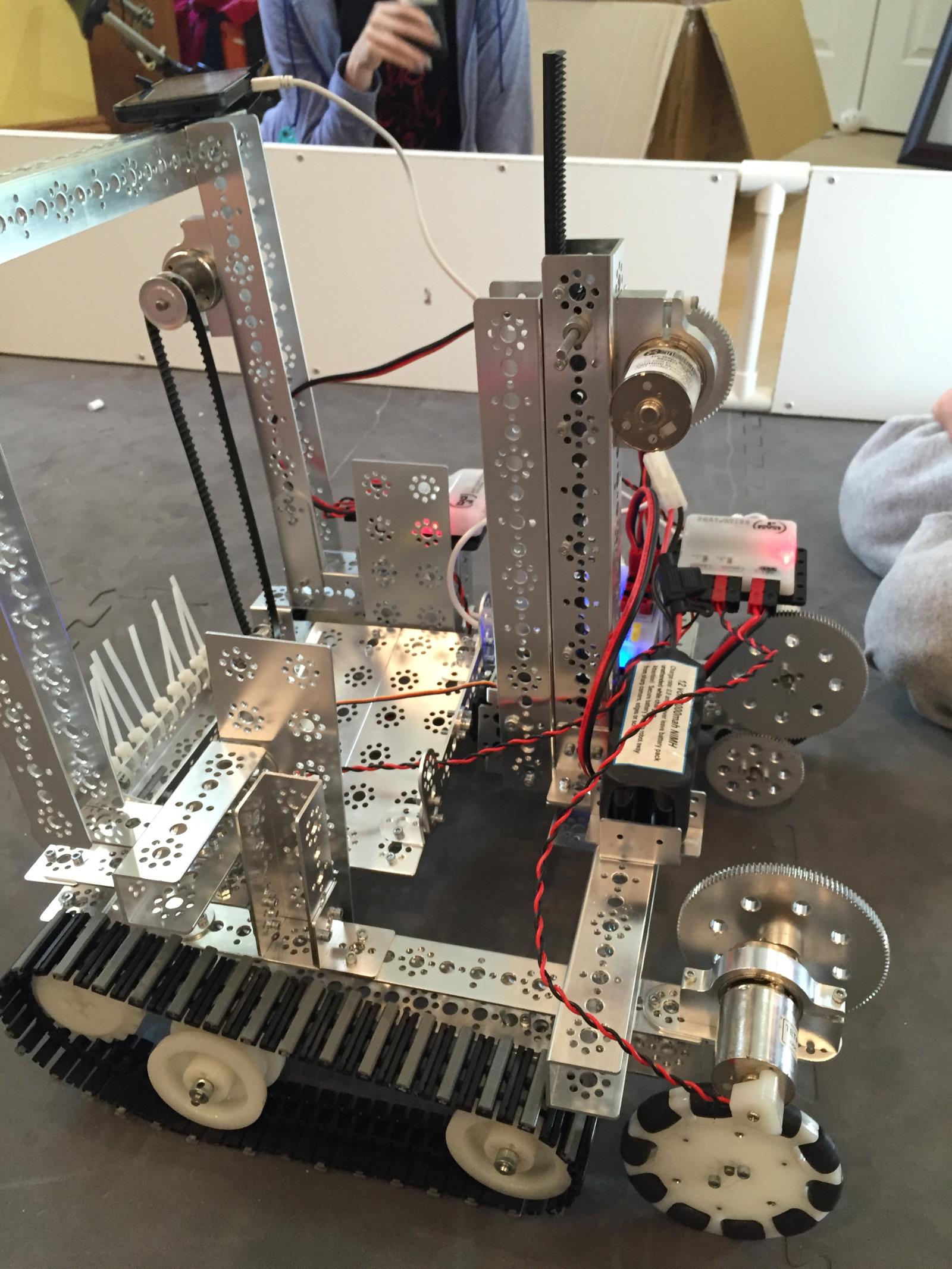

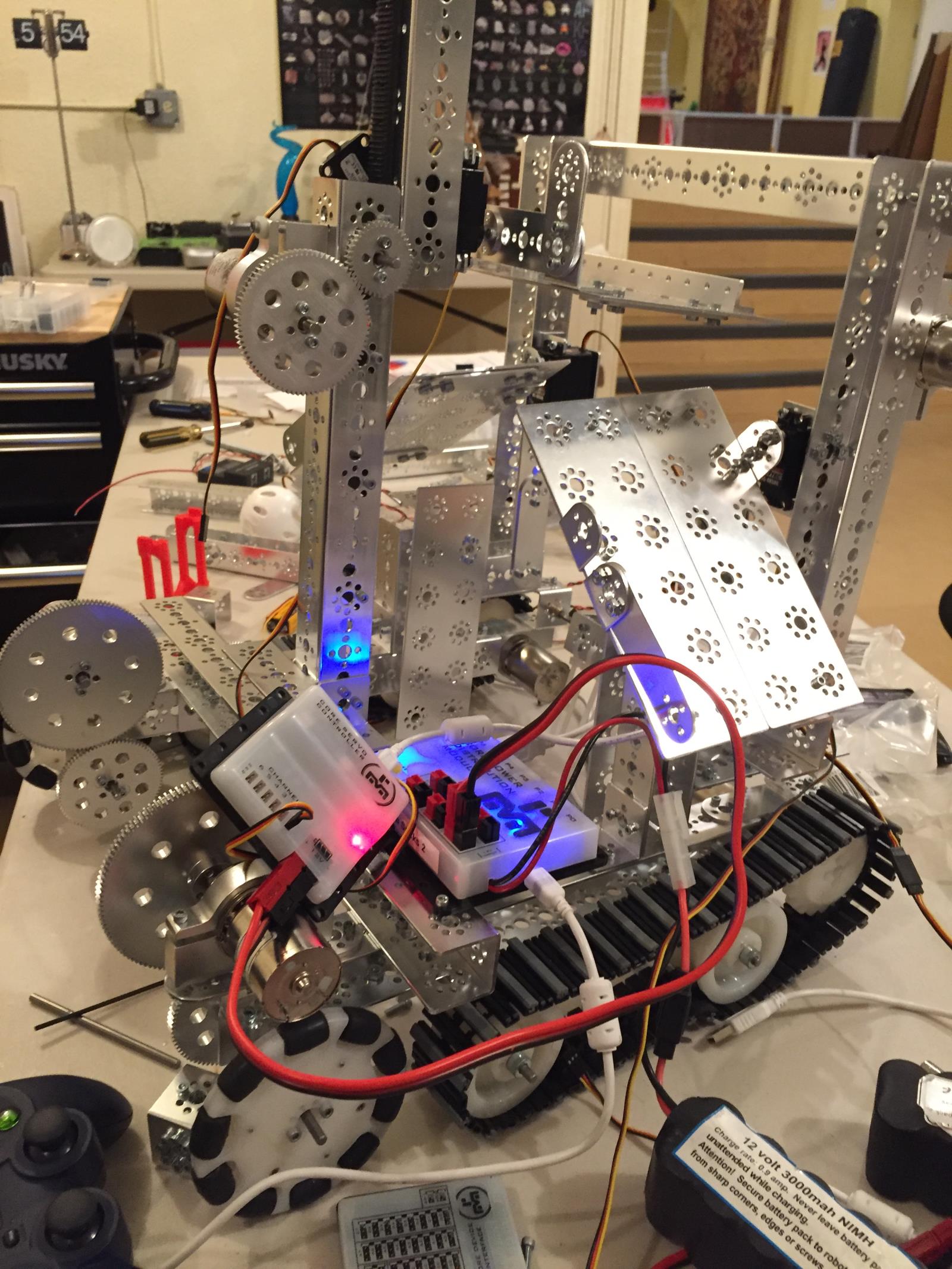

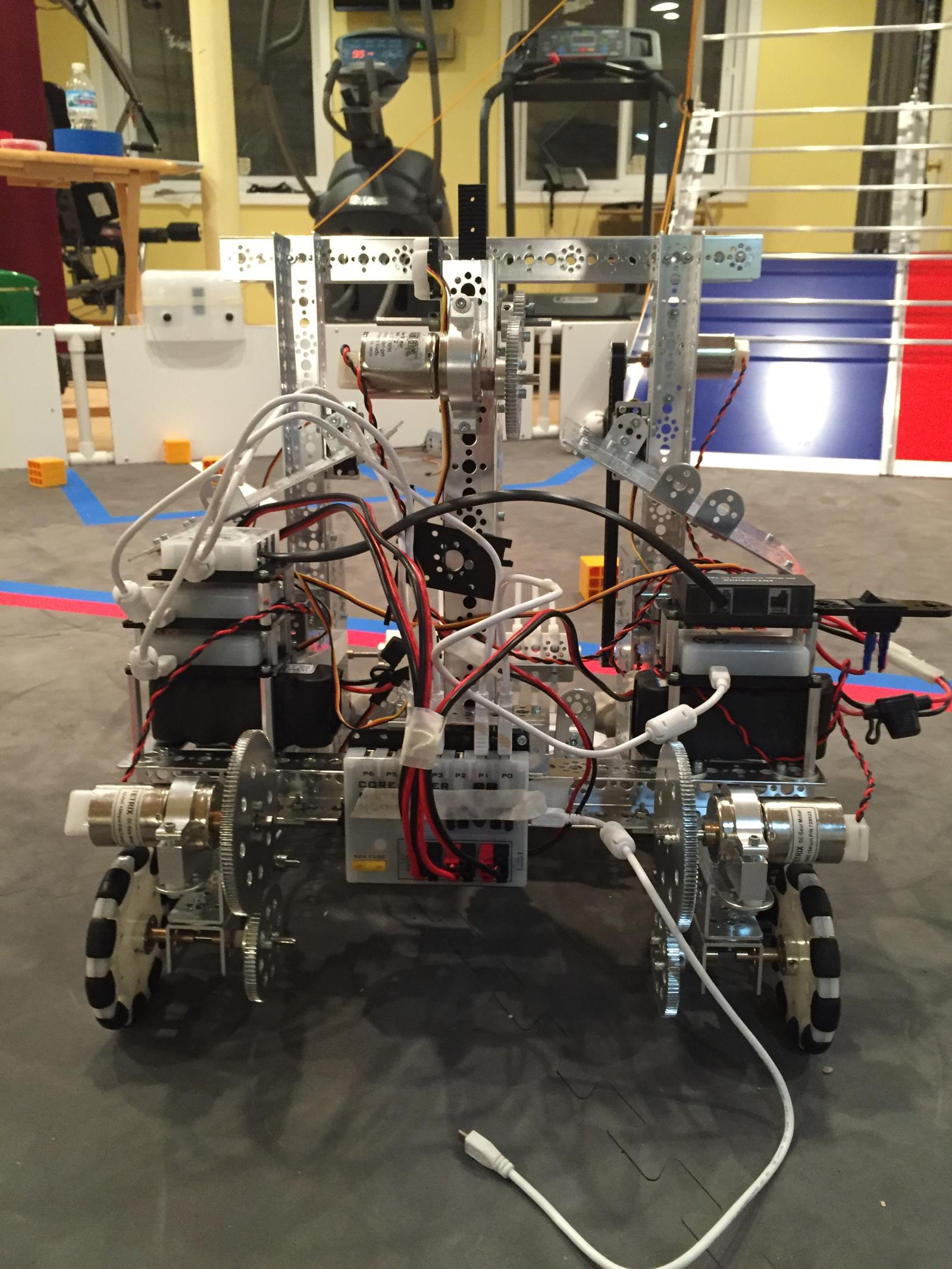

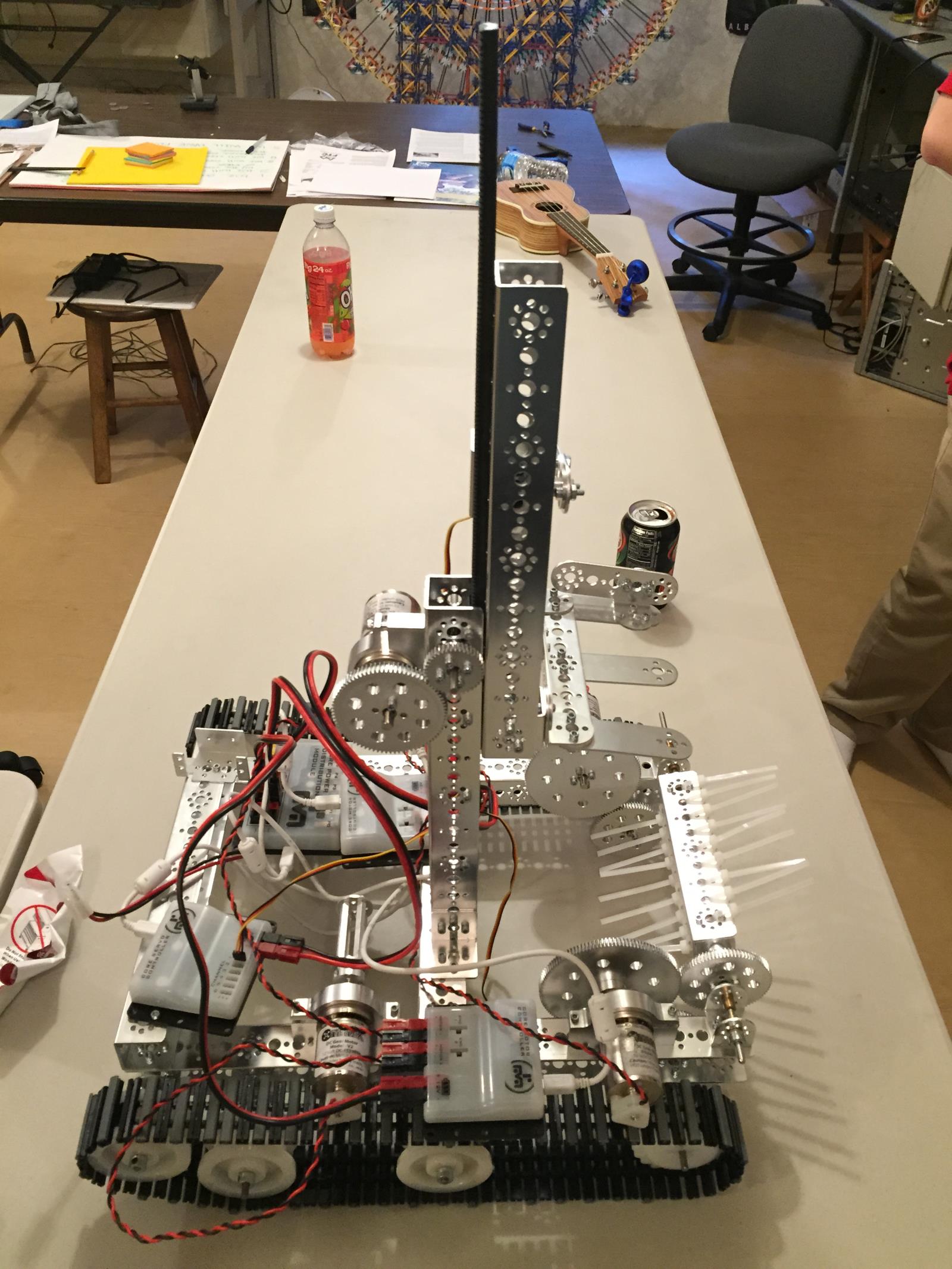

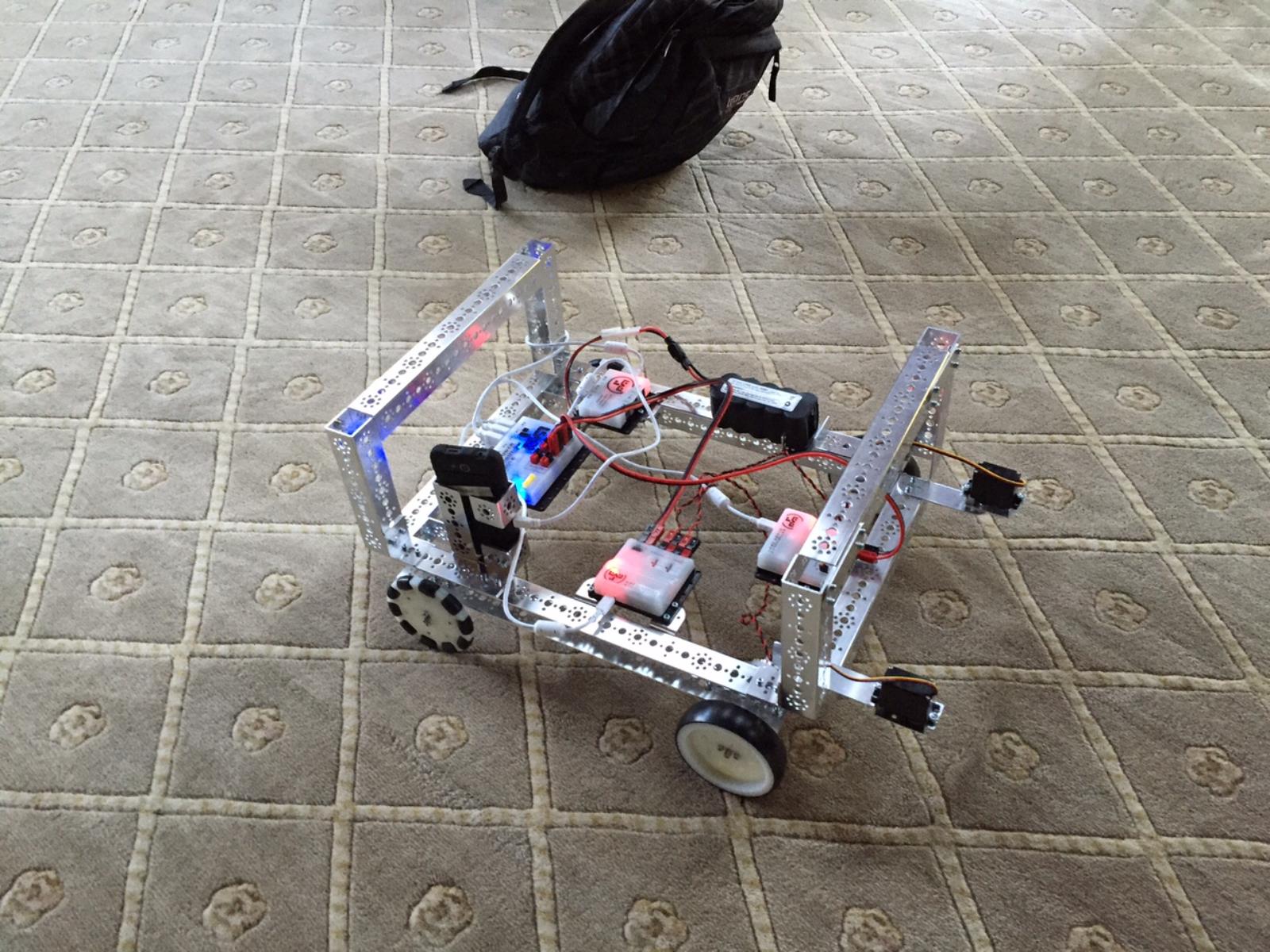

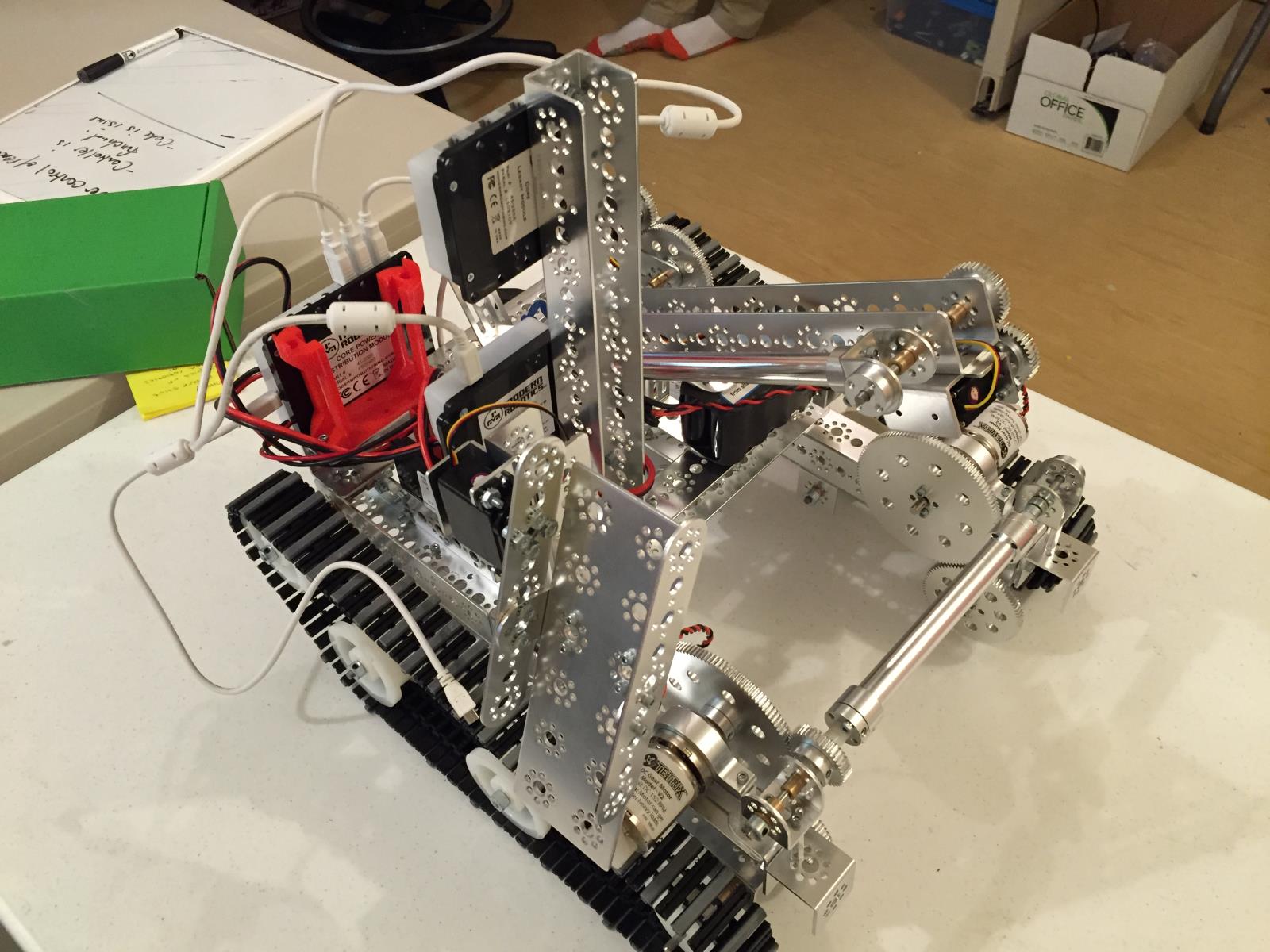

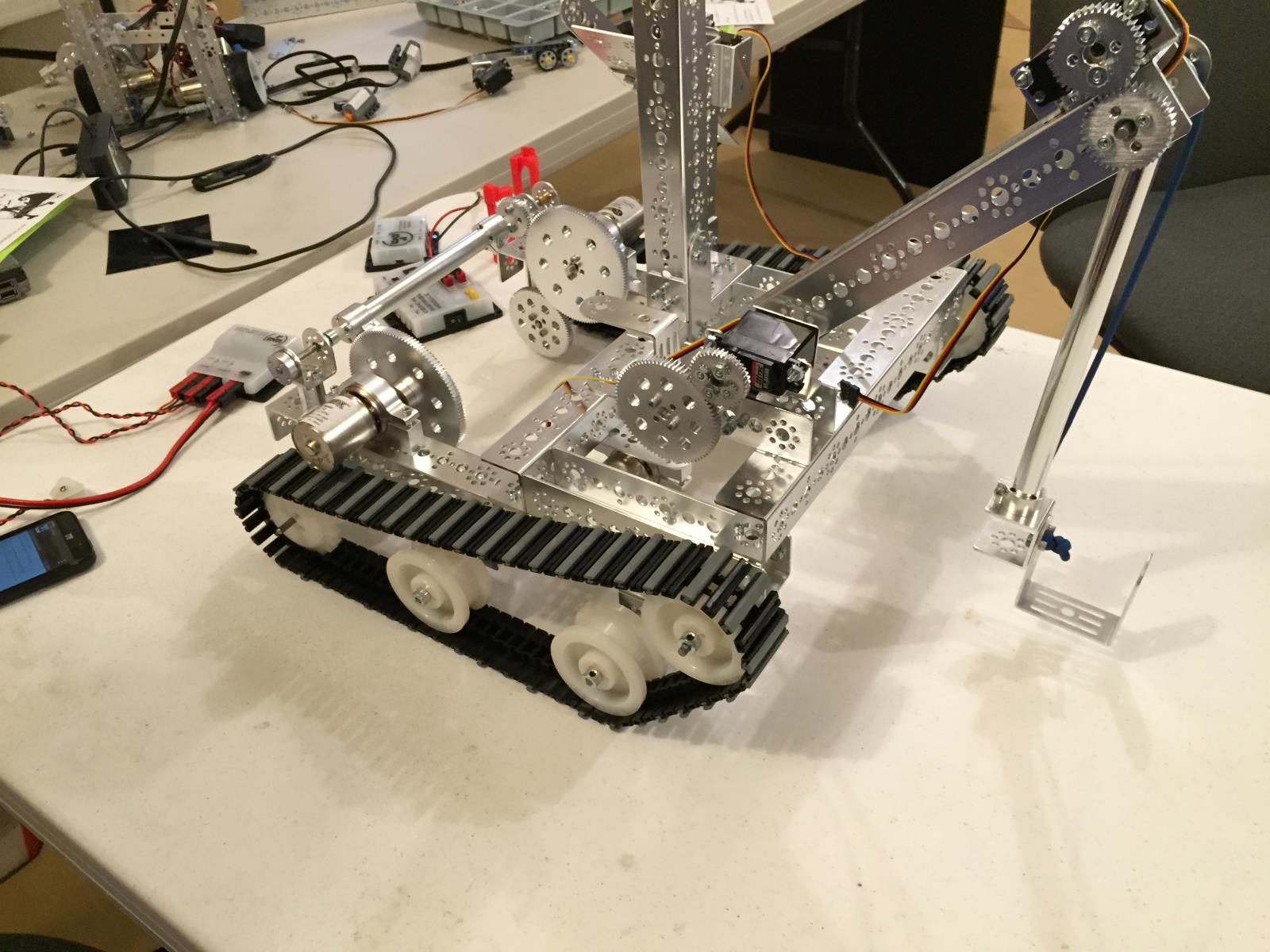

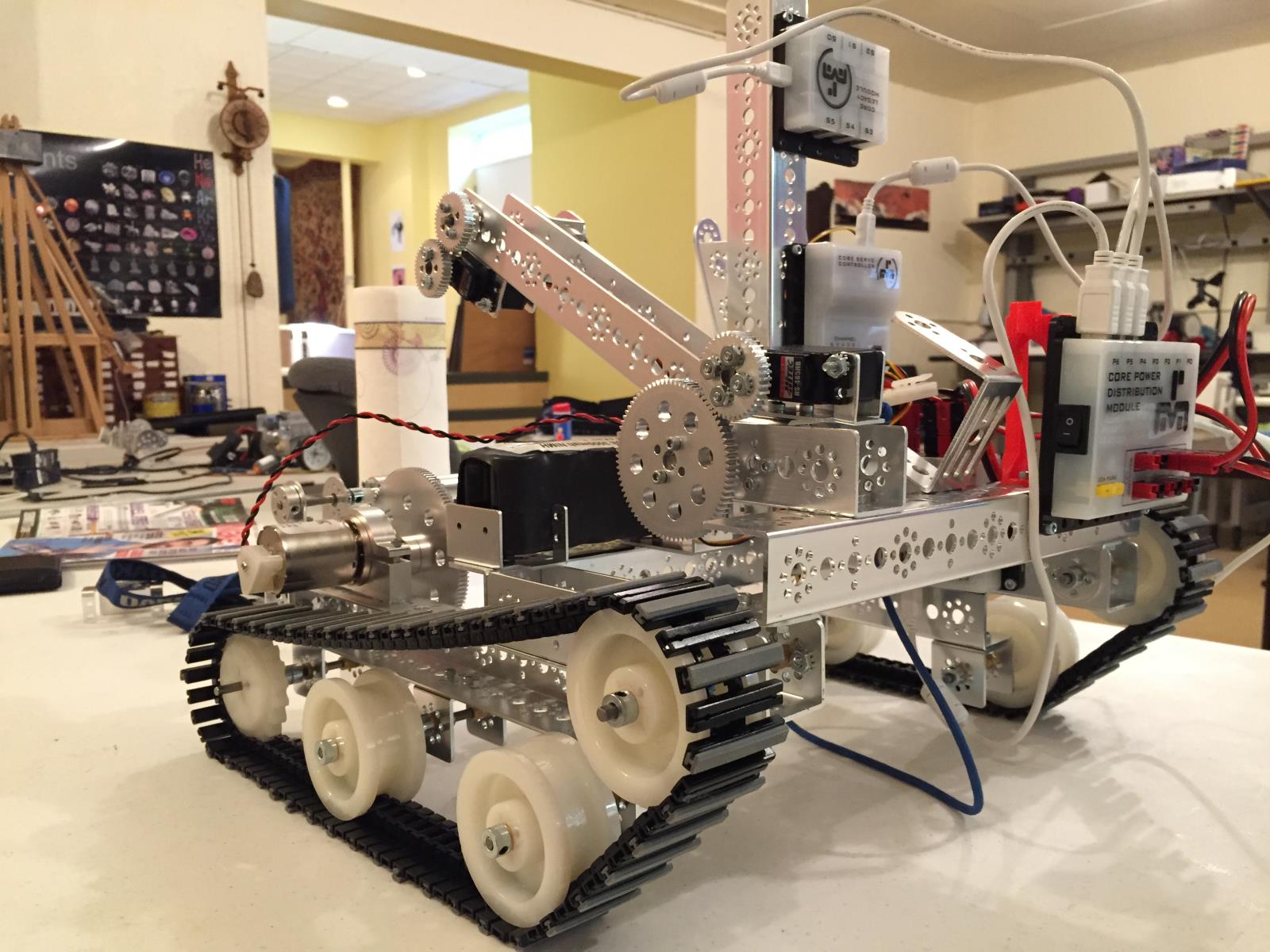

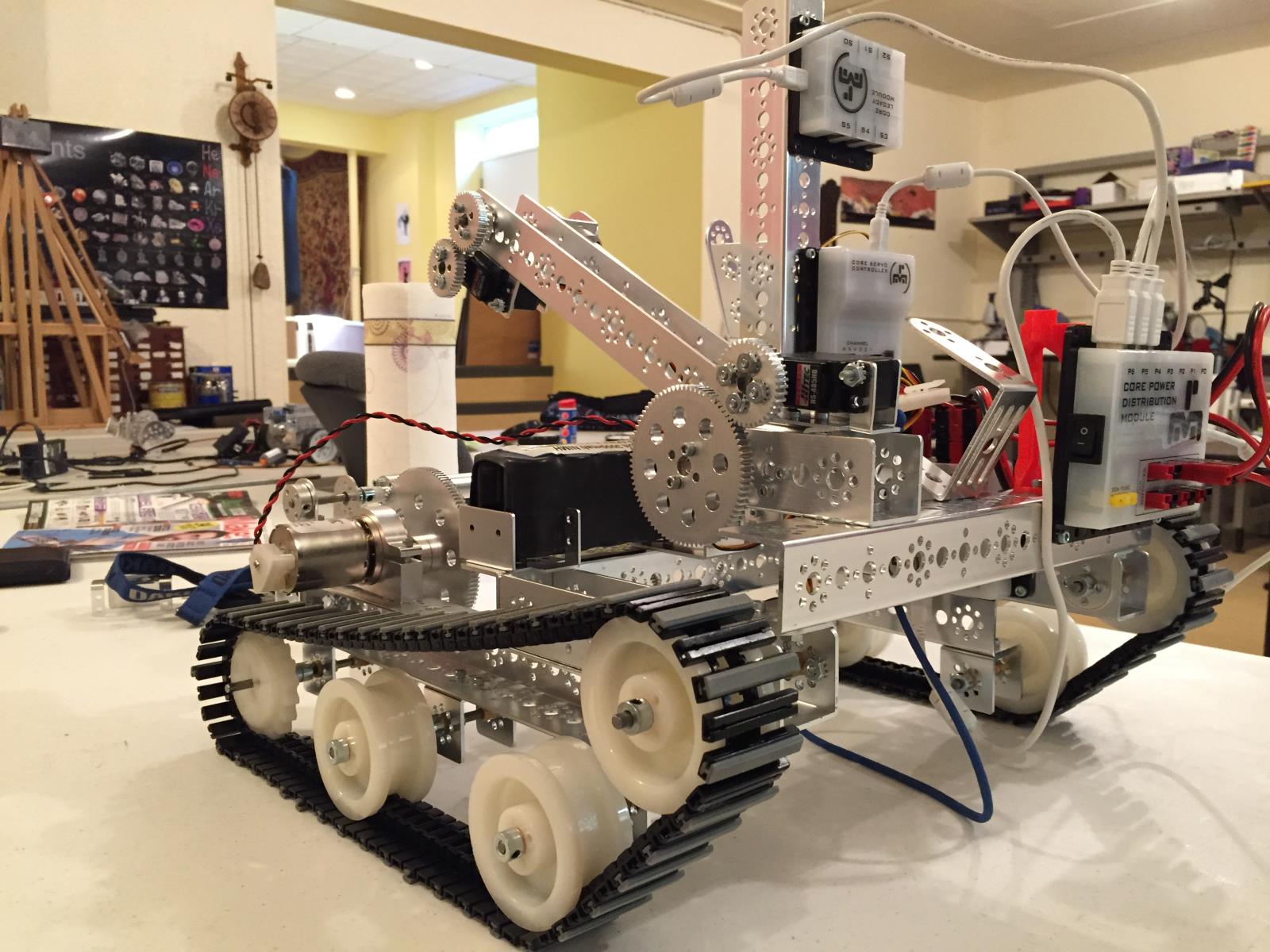

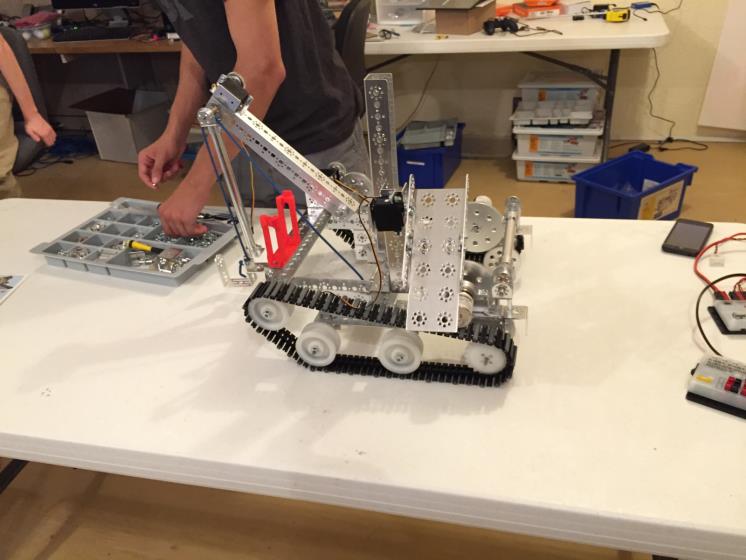

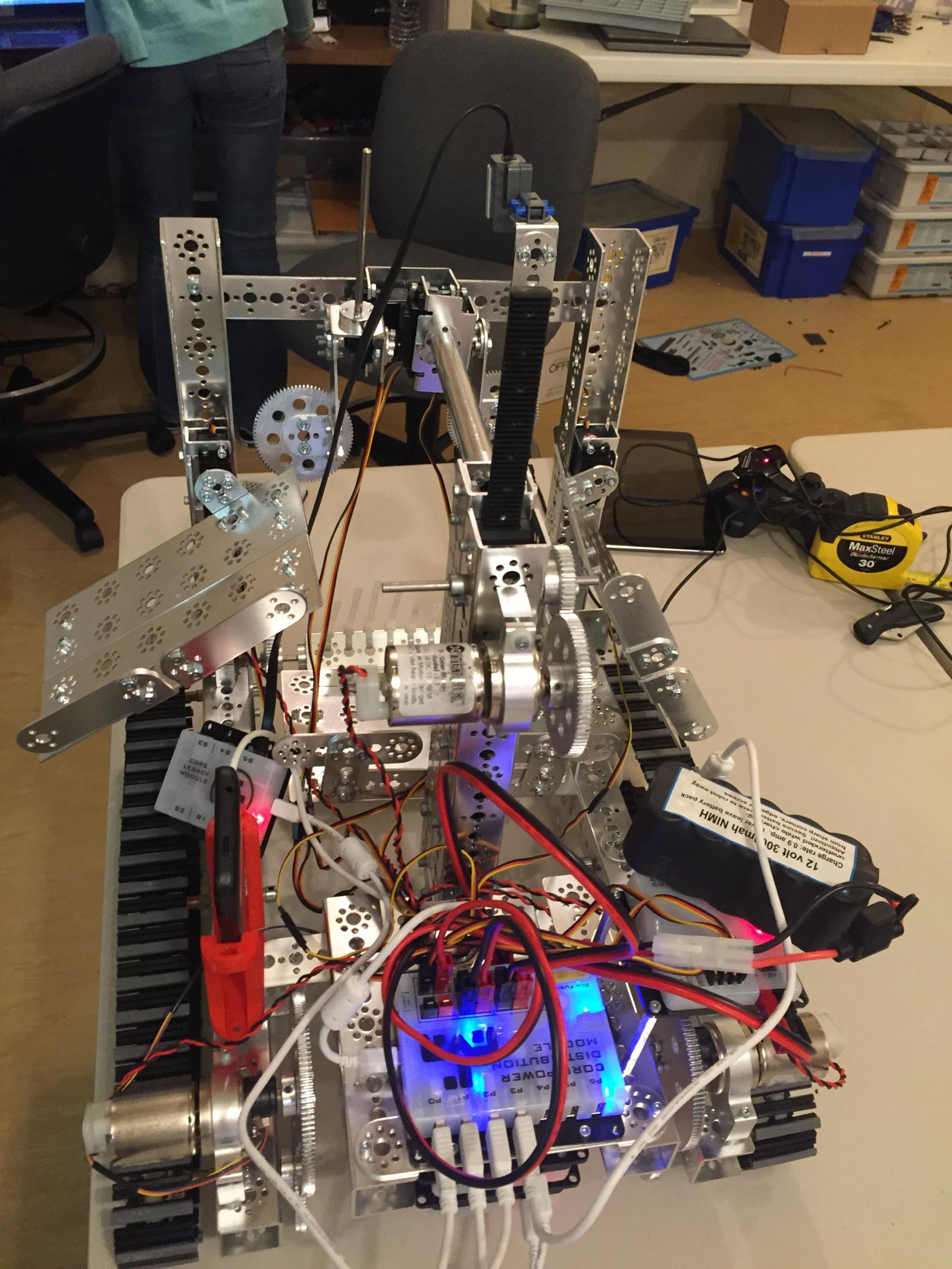

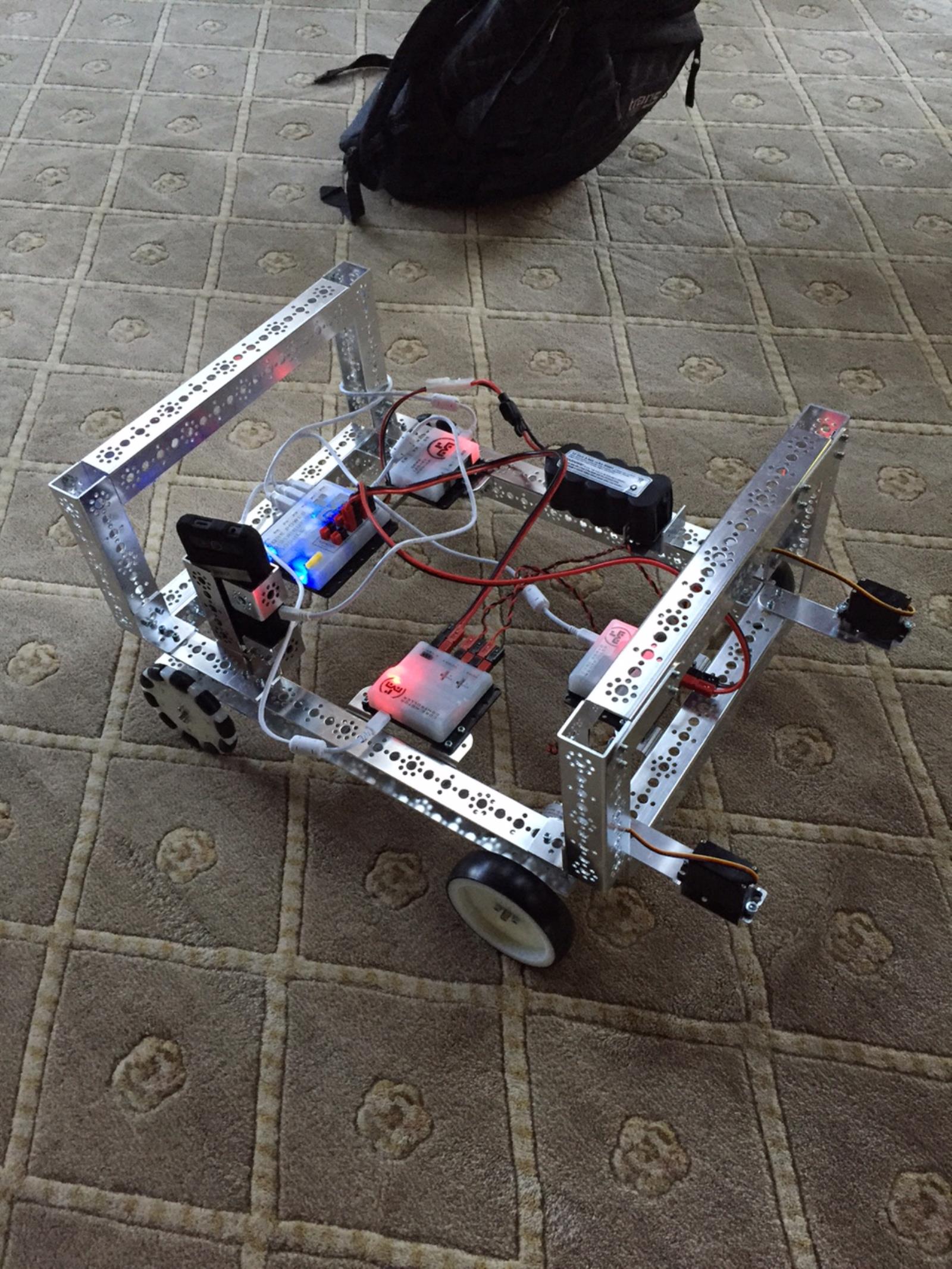

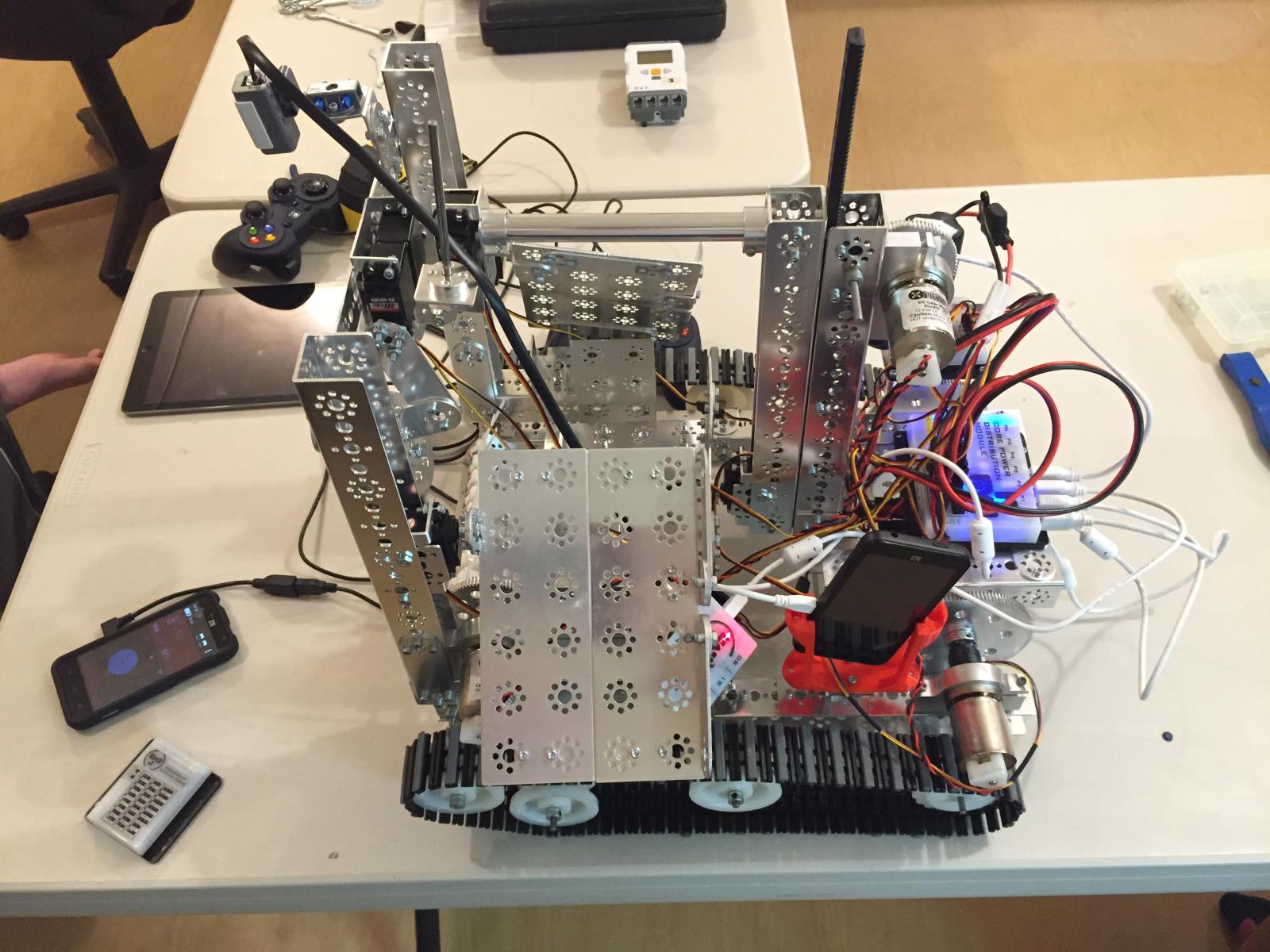

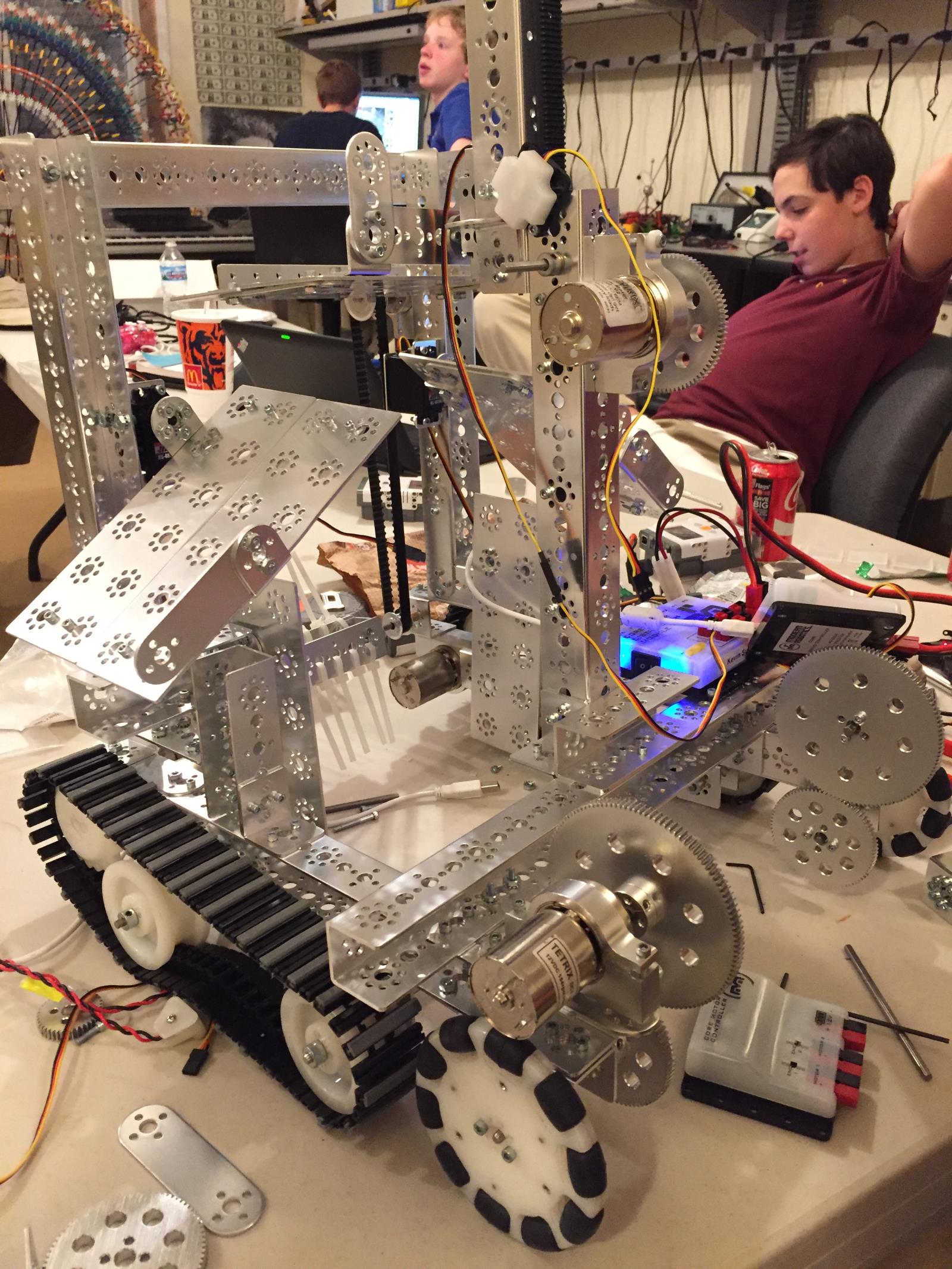

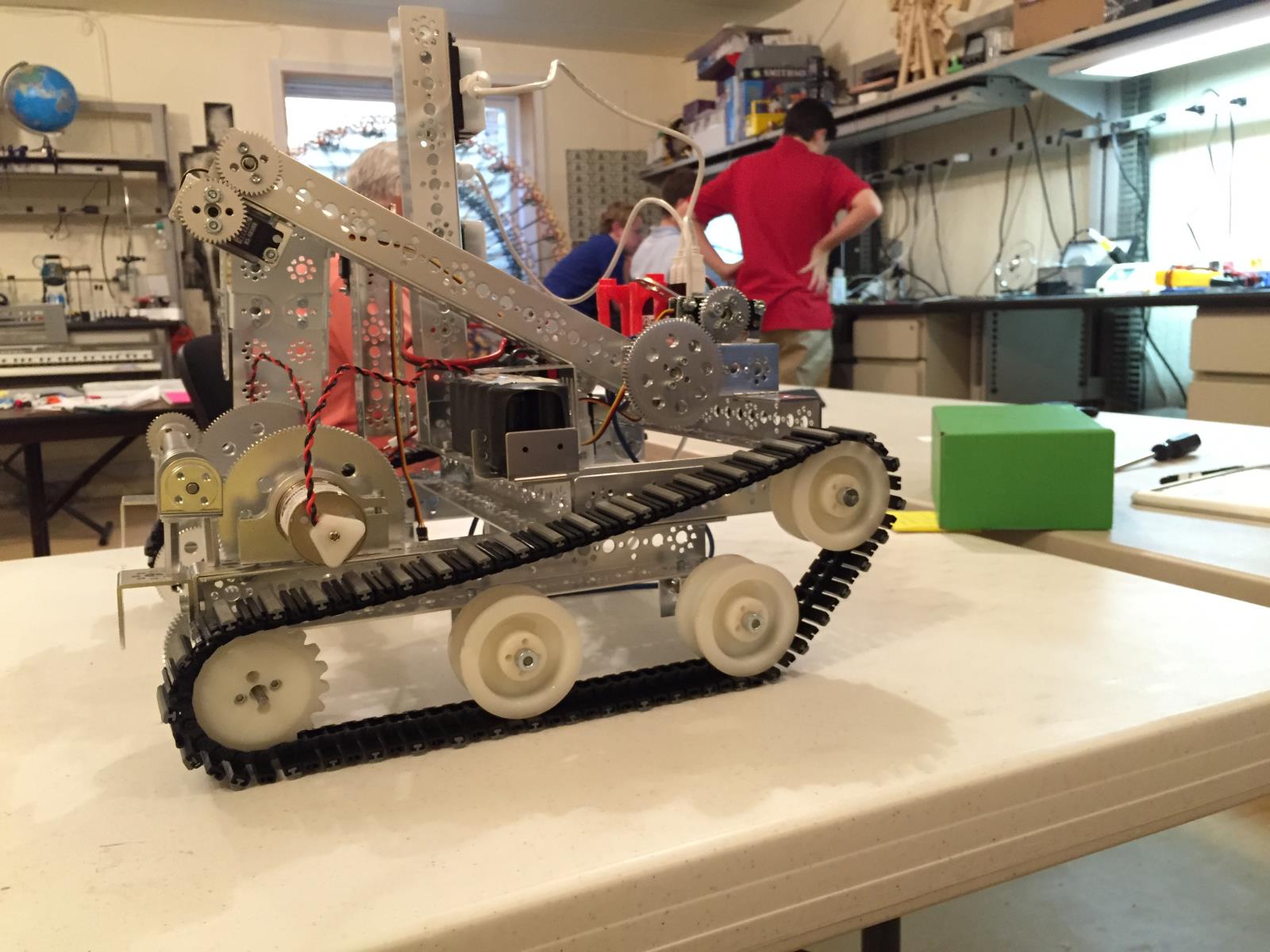

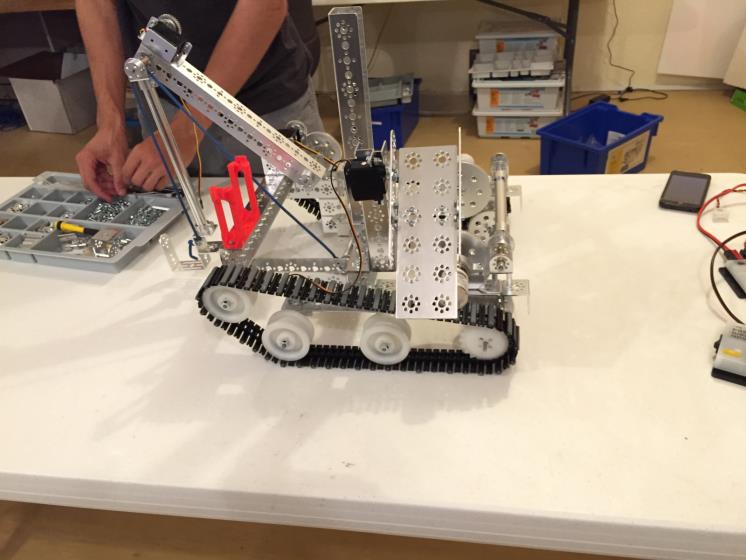

First 2 images are an early play-around prototype to get familar with the system.

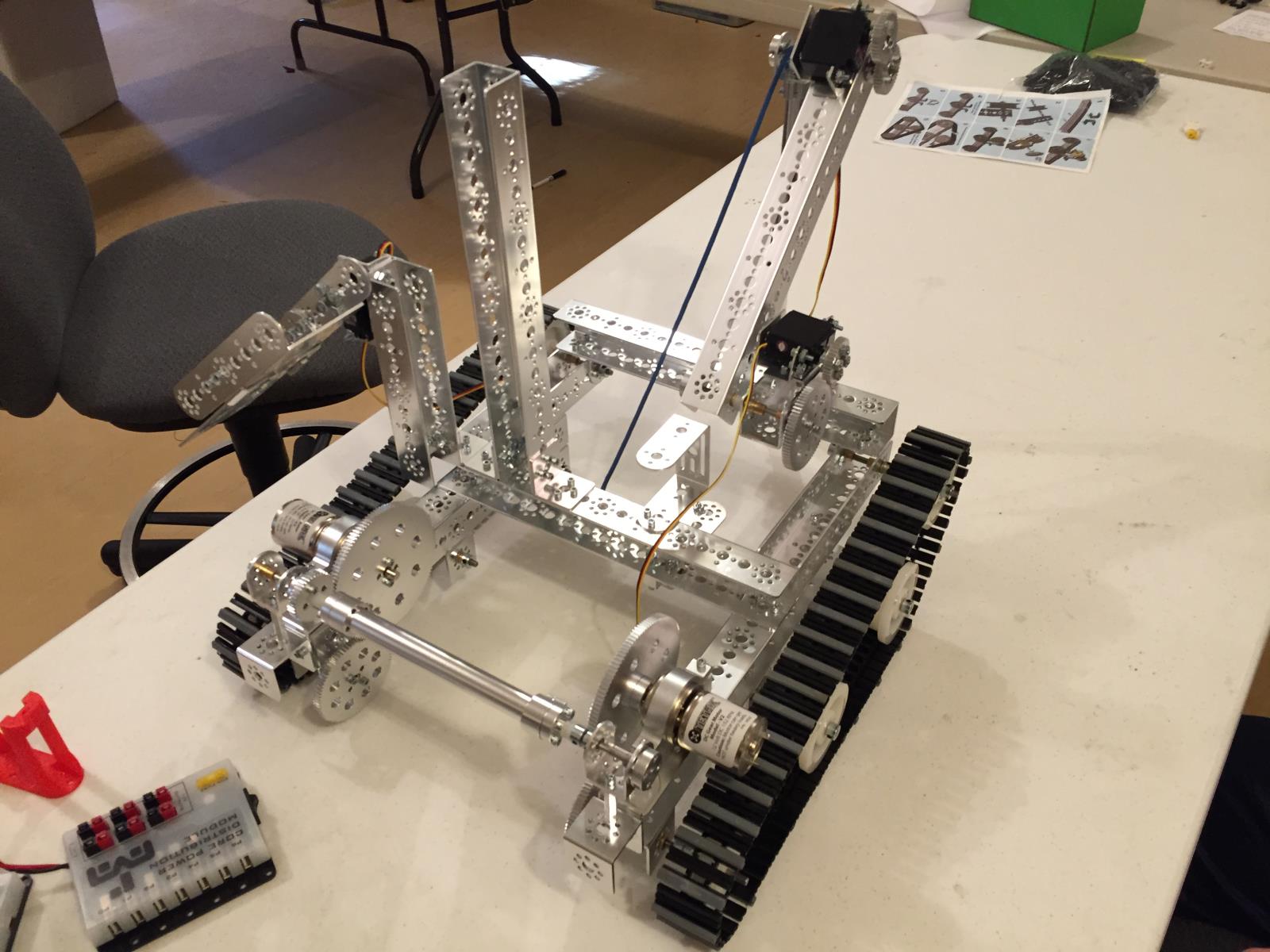

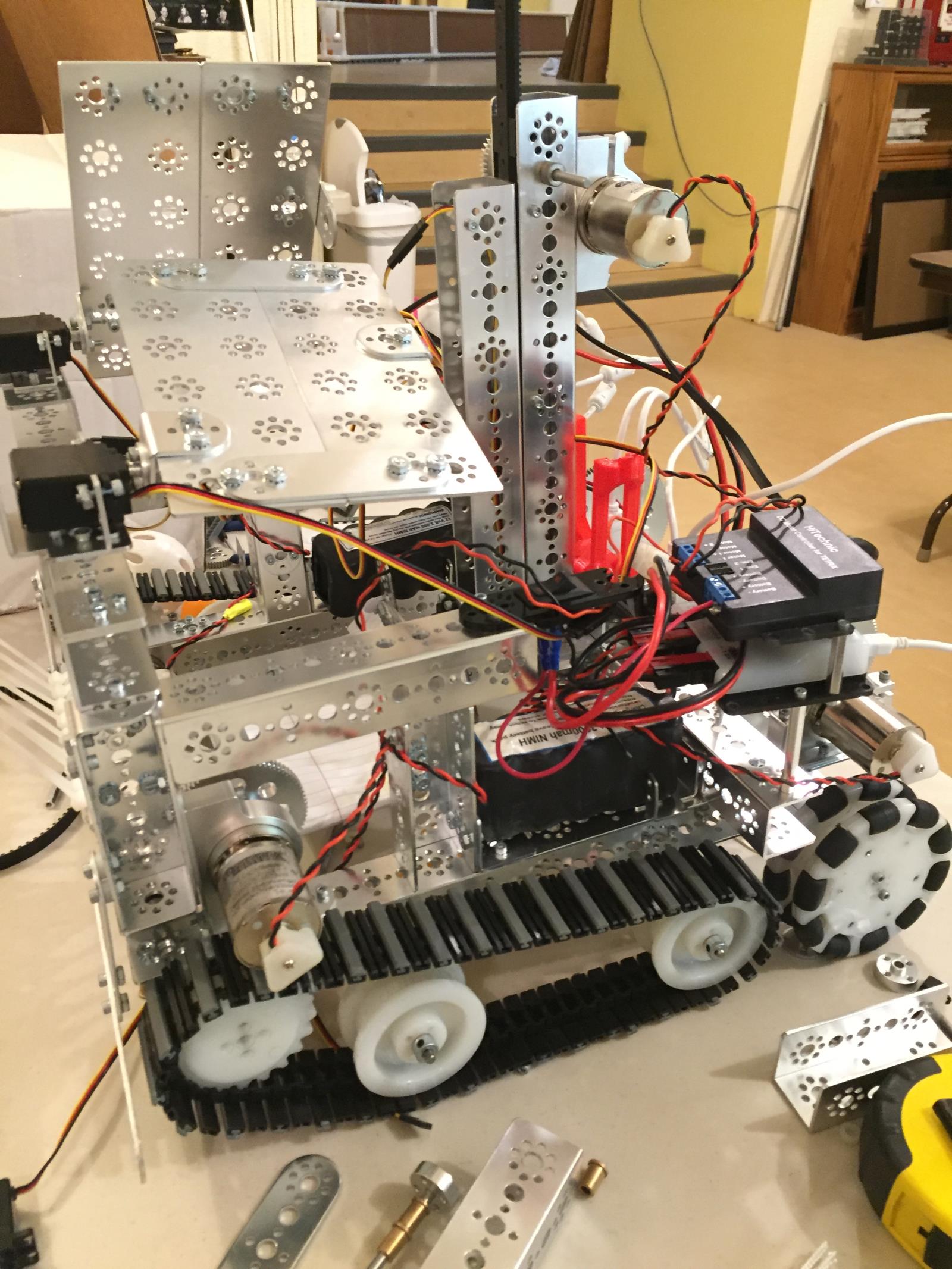

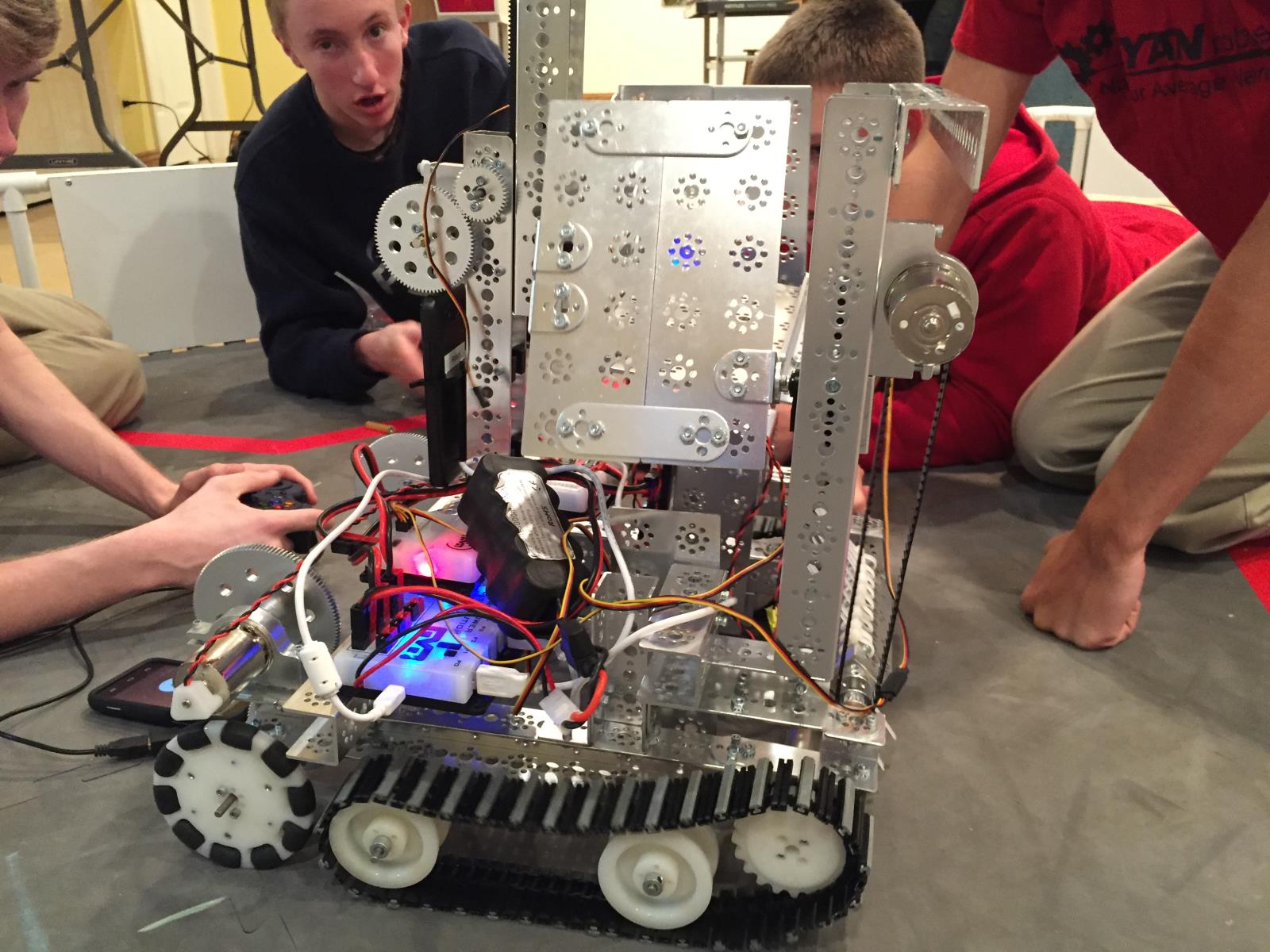

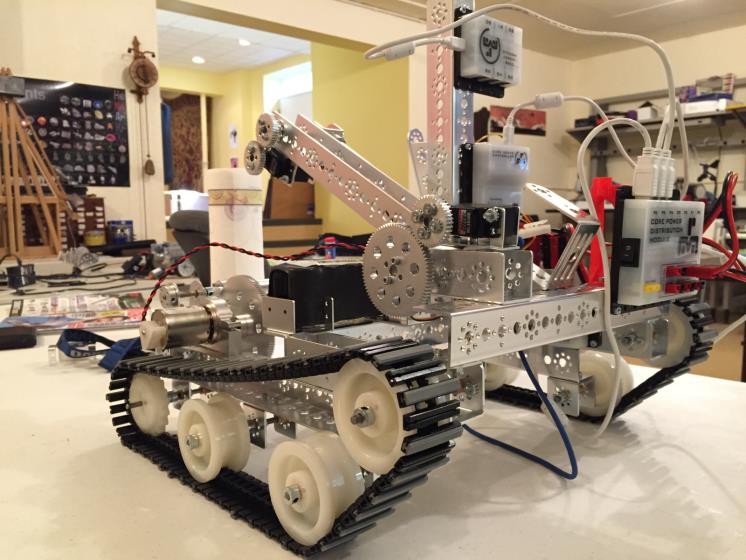

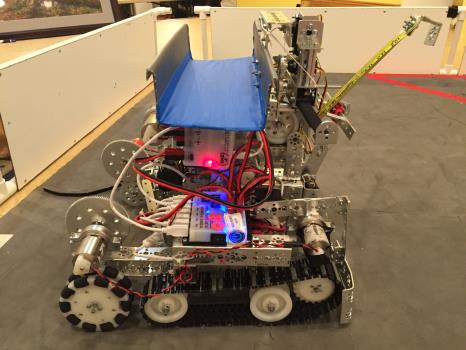

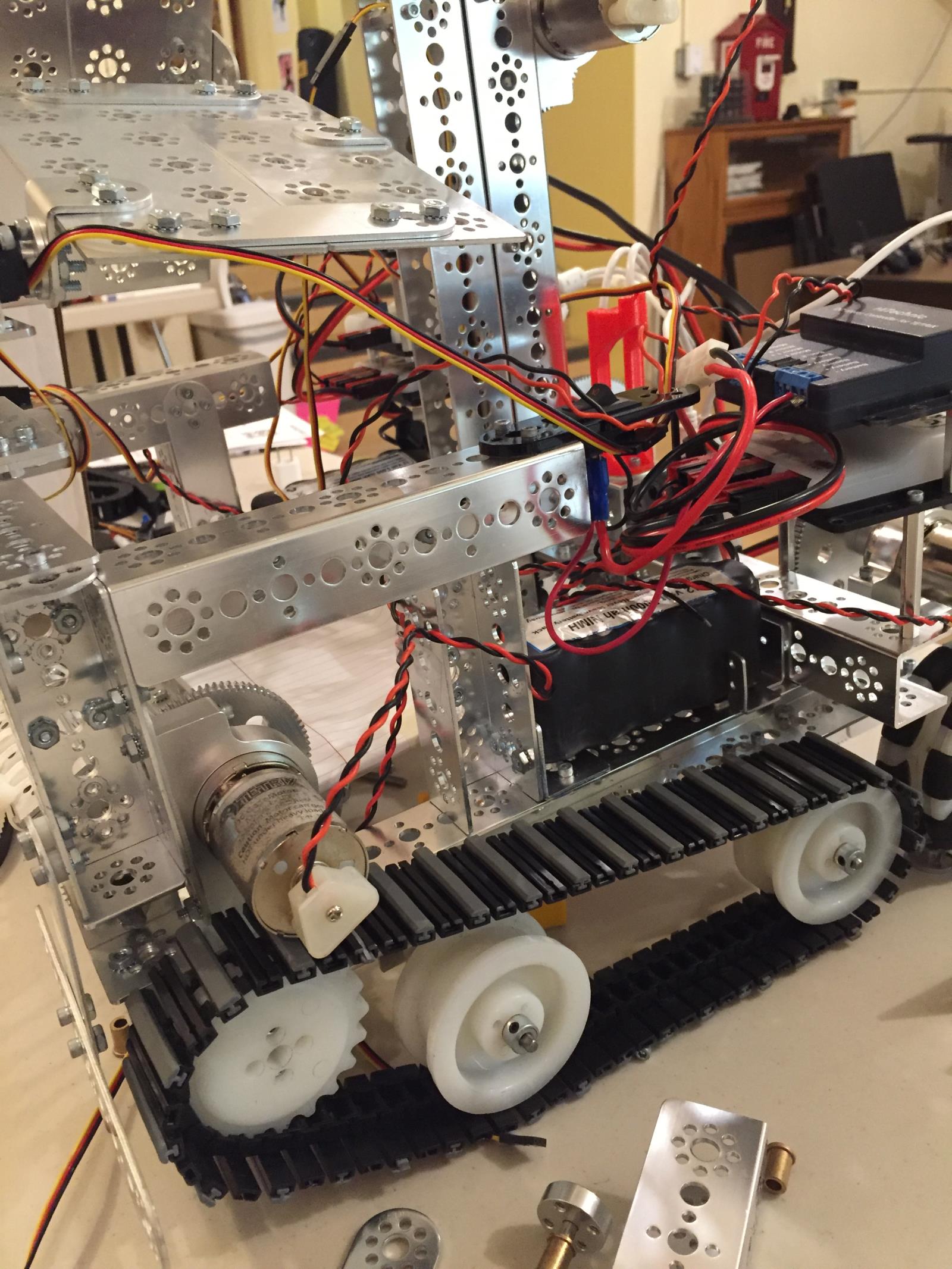

Subsequently, it was decided to use tank treads in order to do the
climbing necessary for the Res-Q challenge.

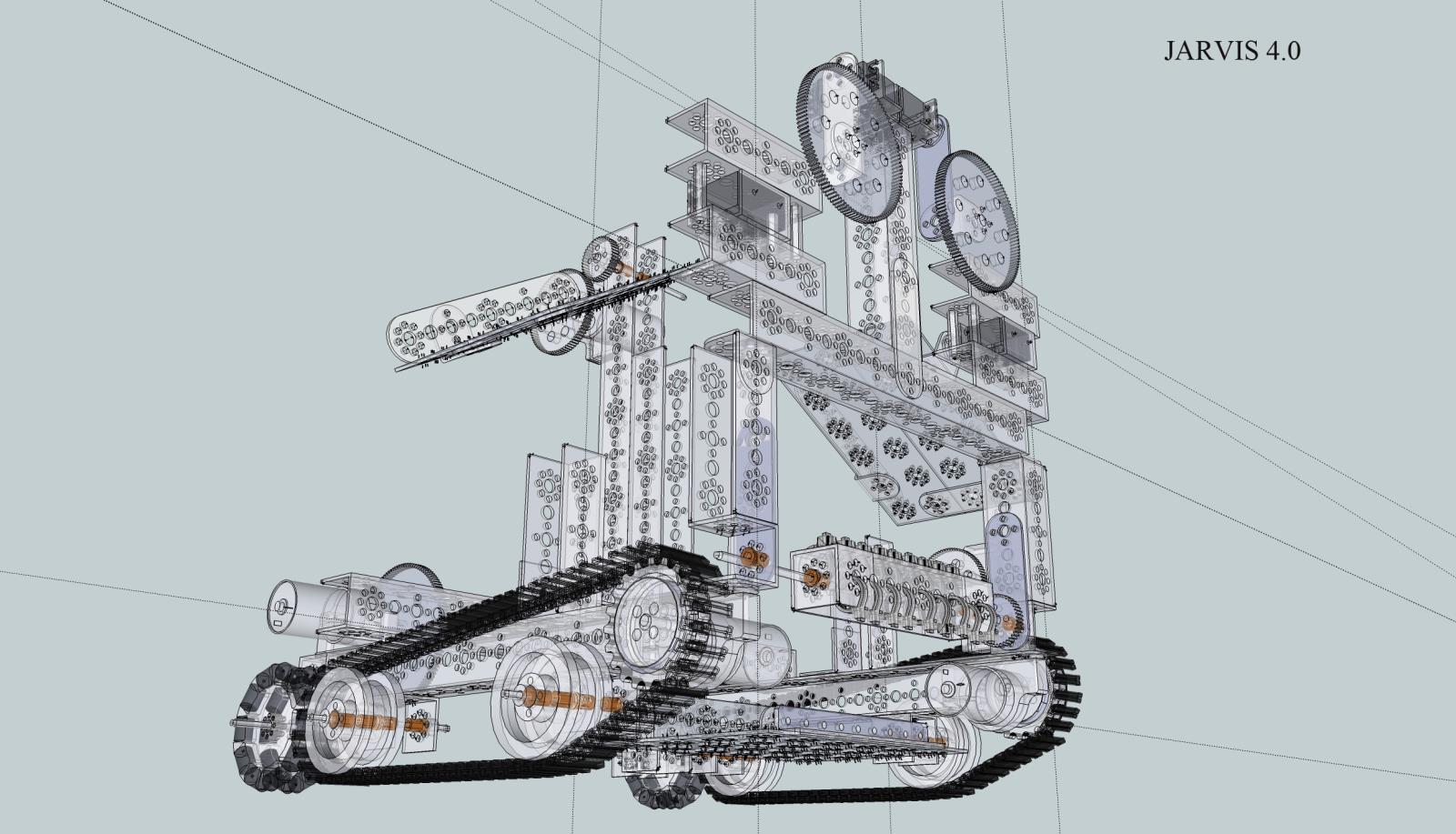

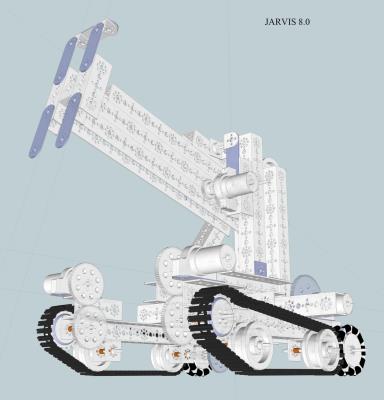

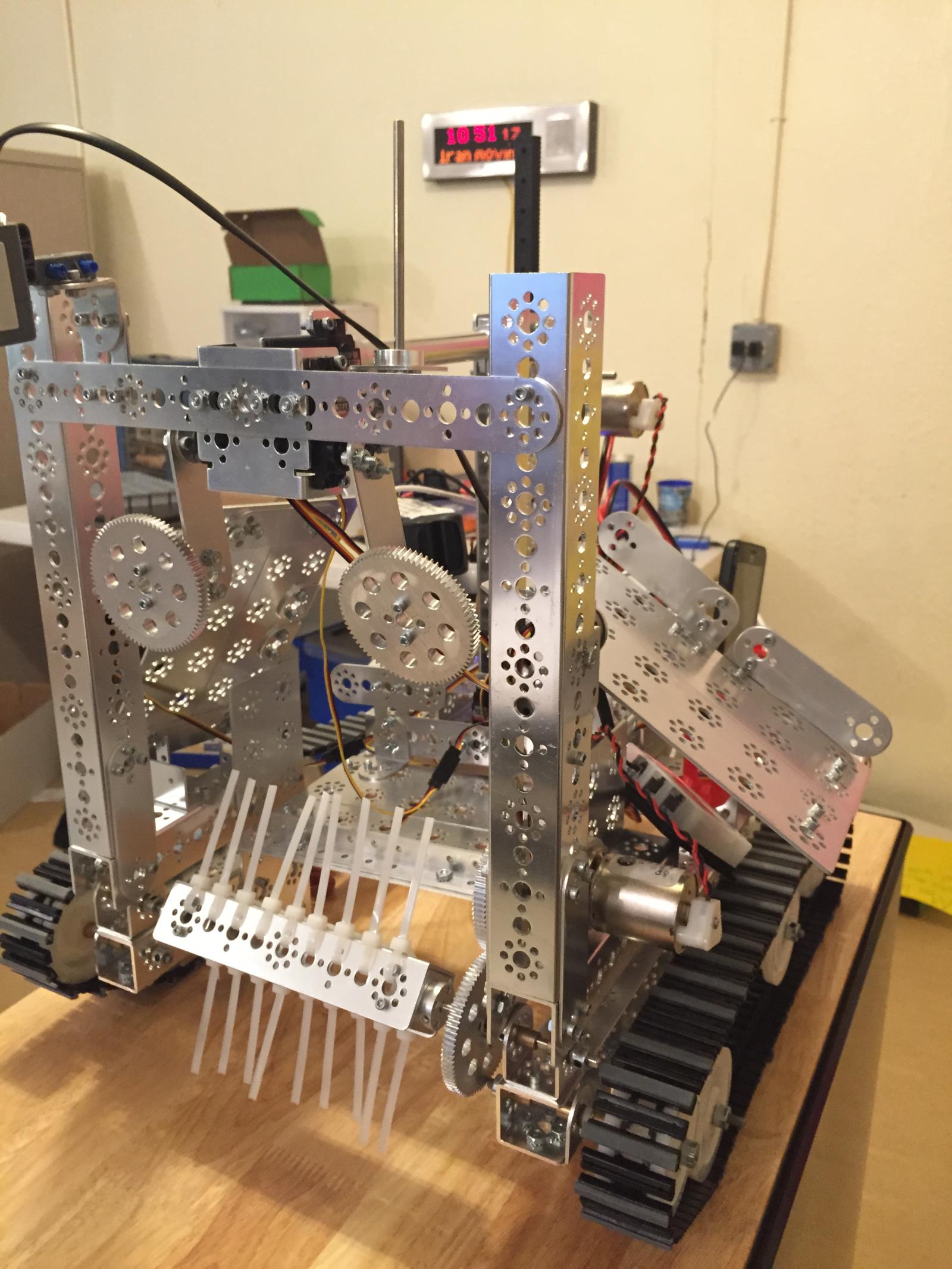

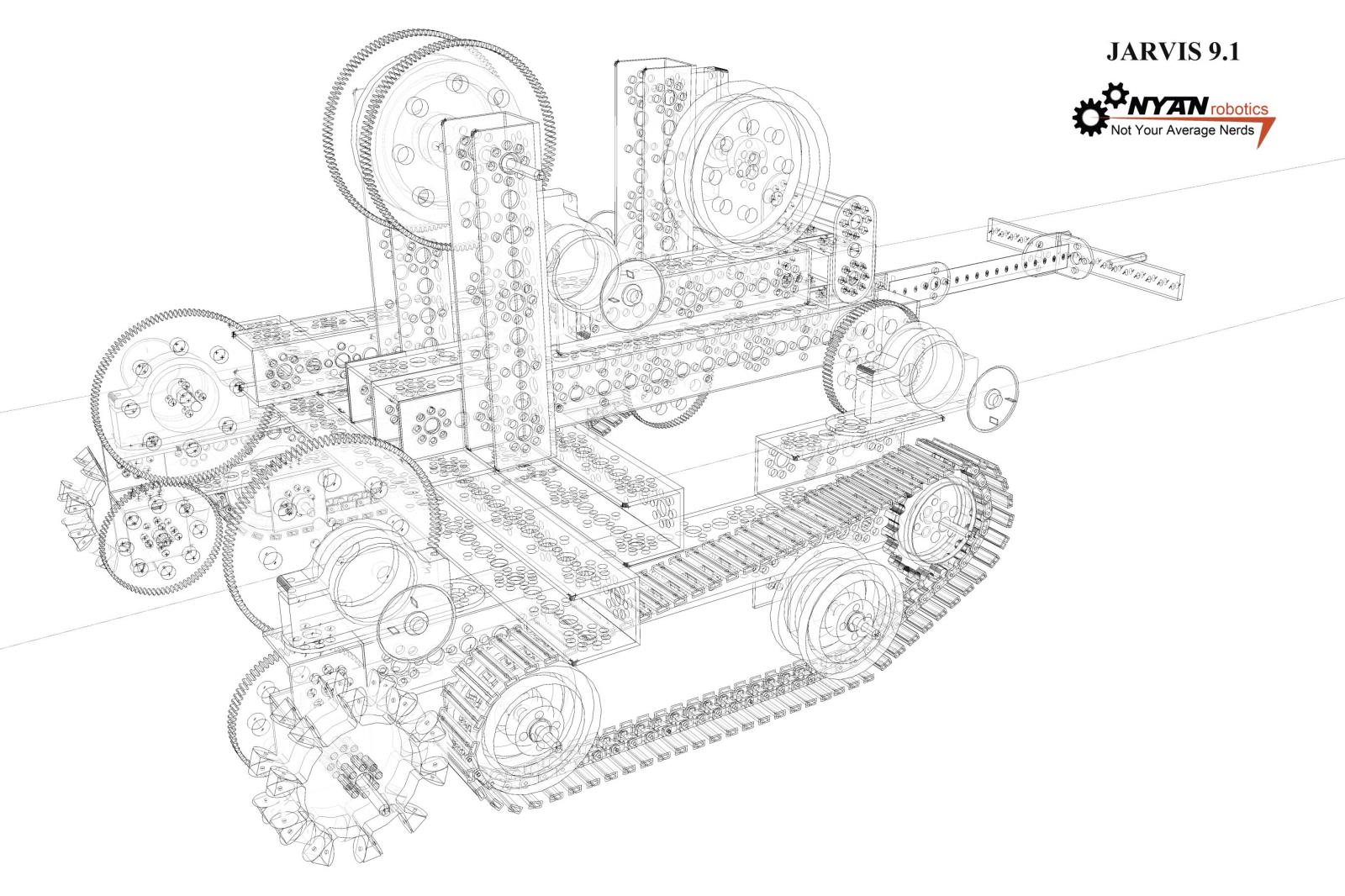

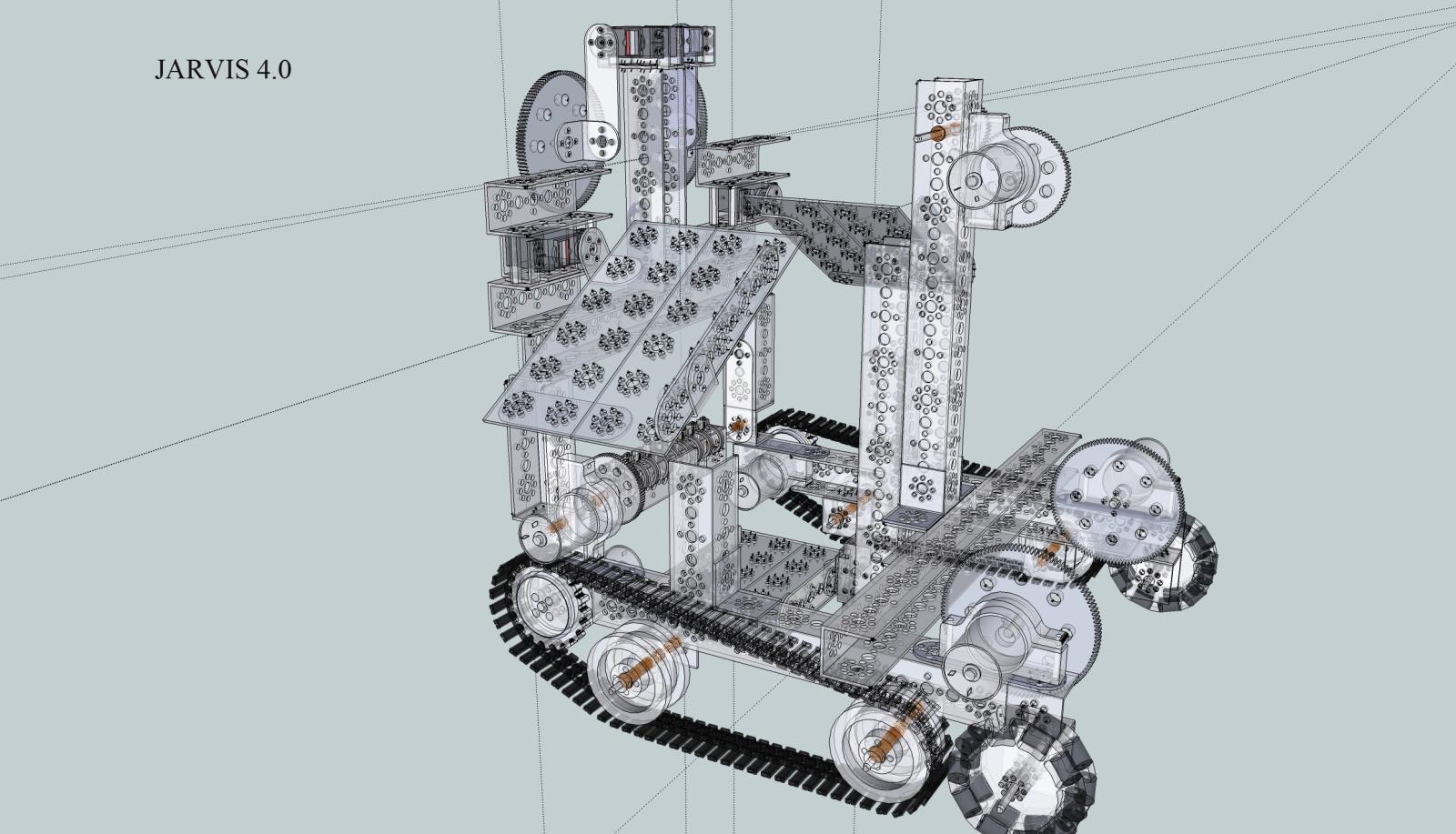

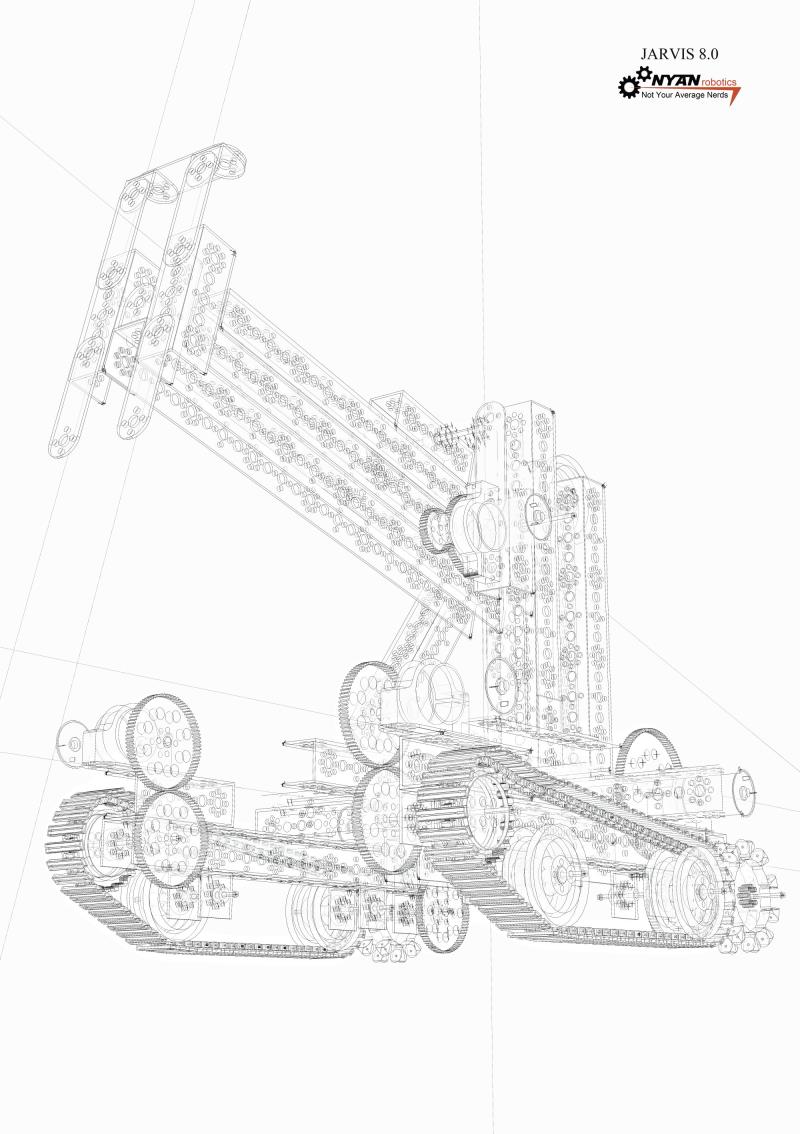

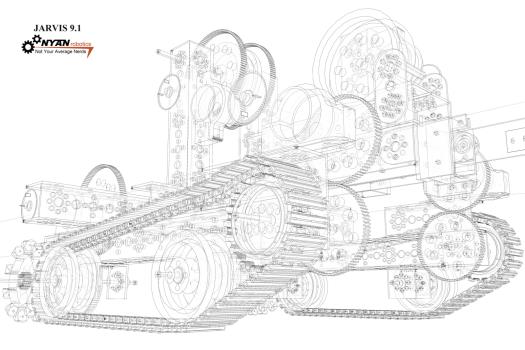

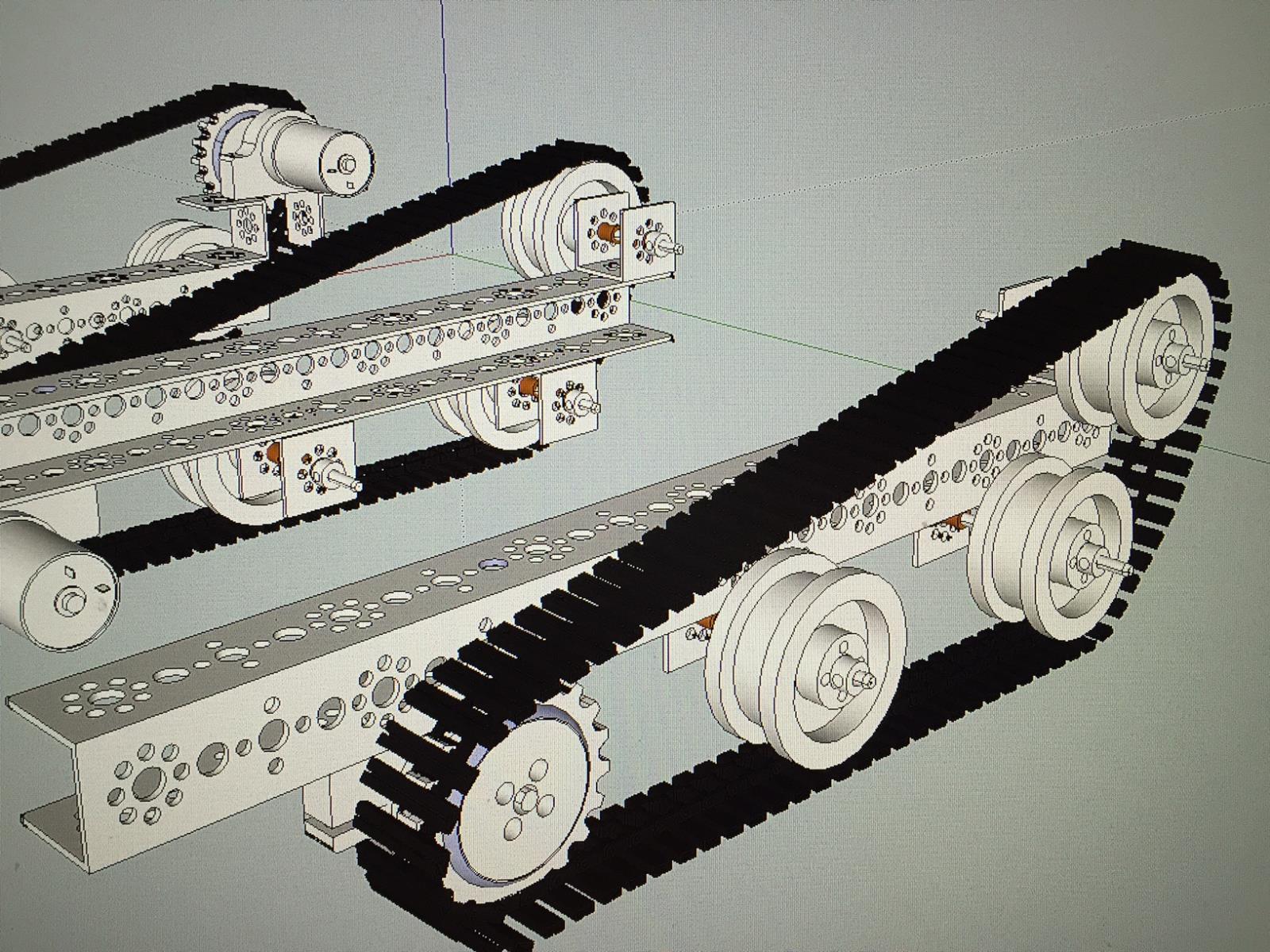

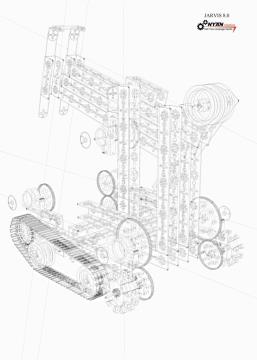

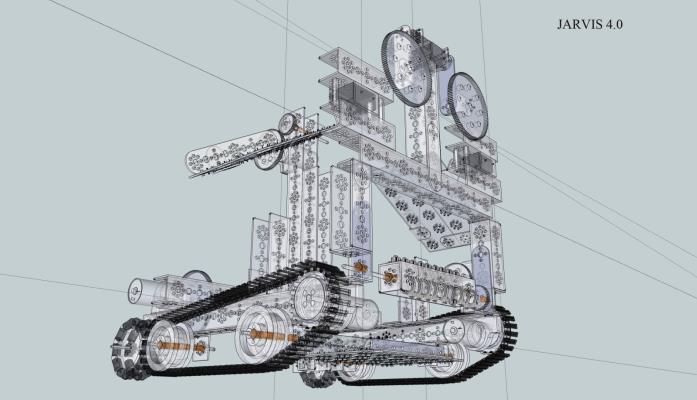

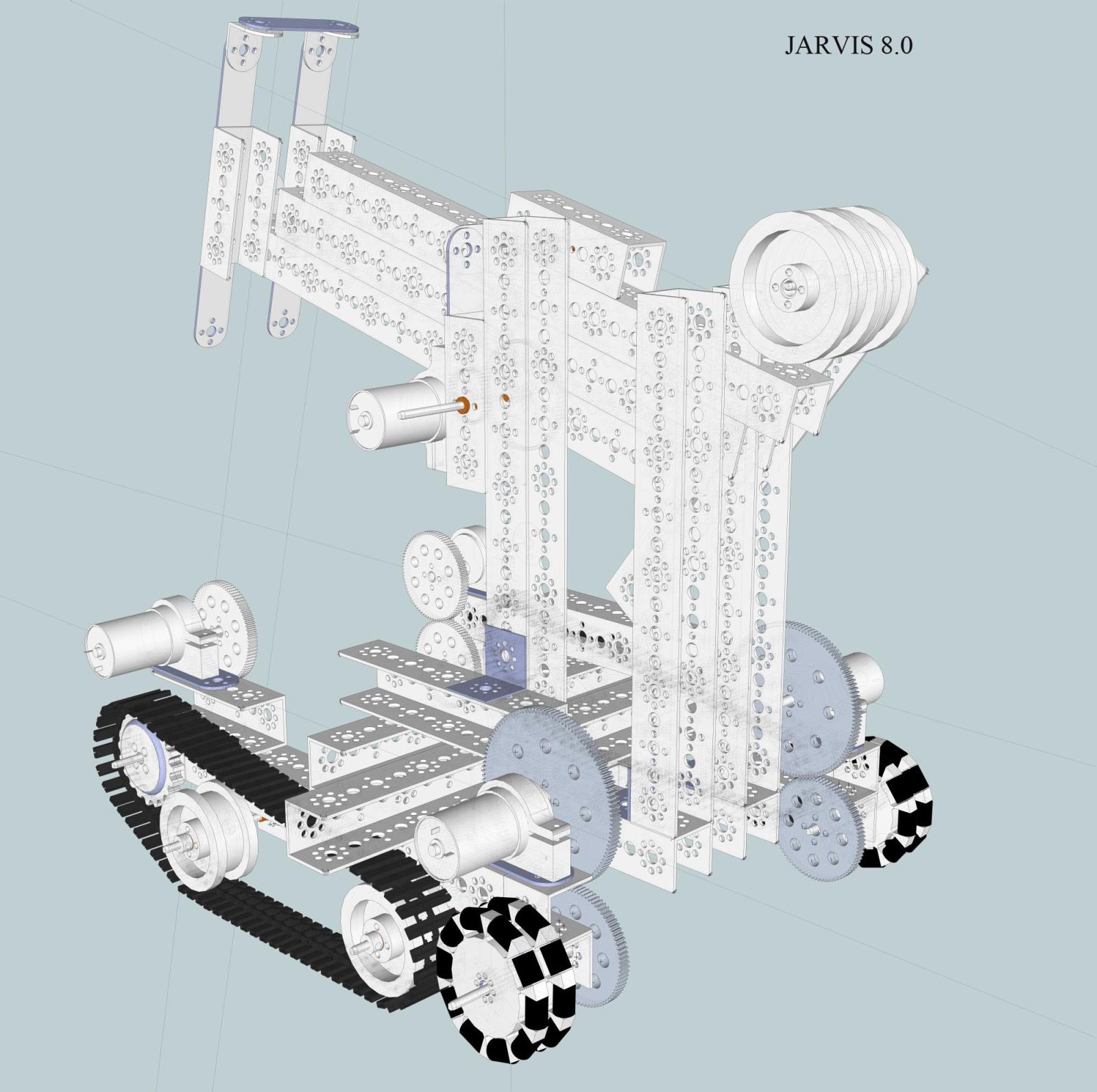

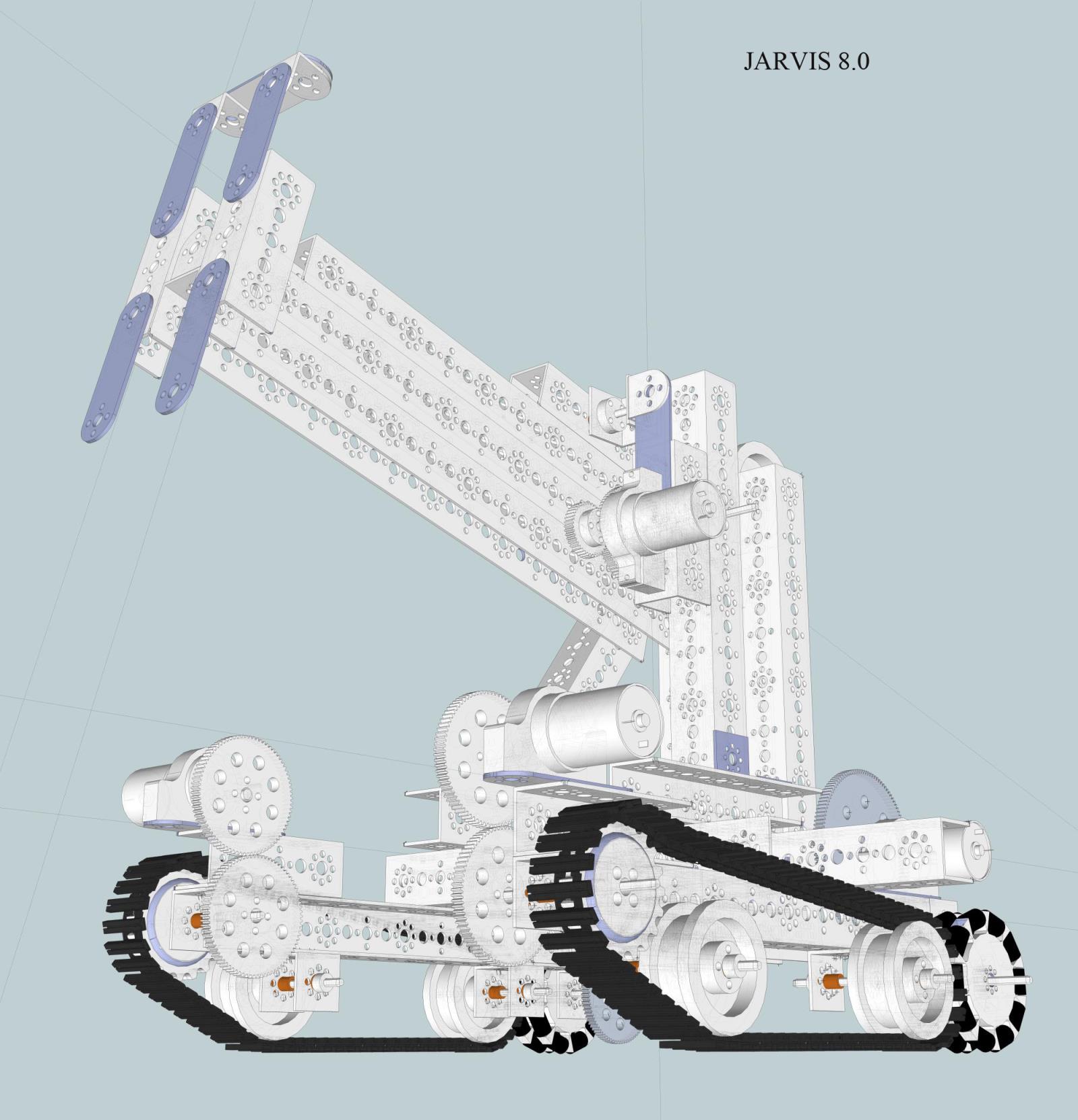

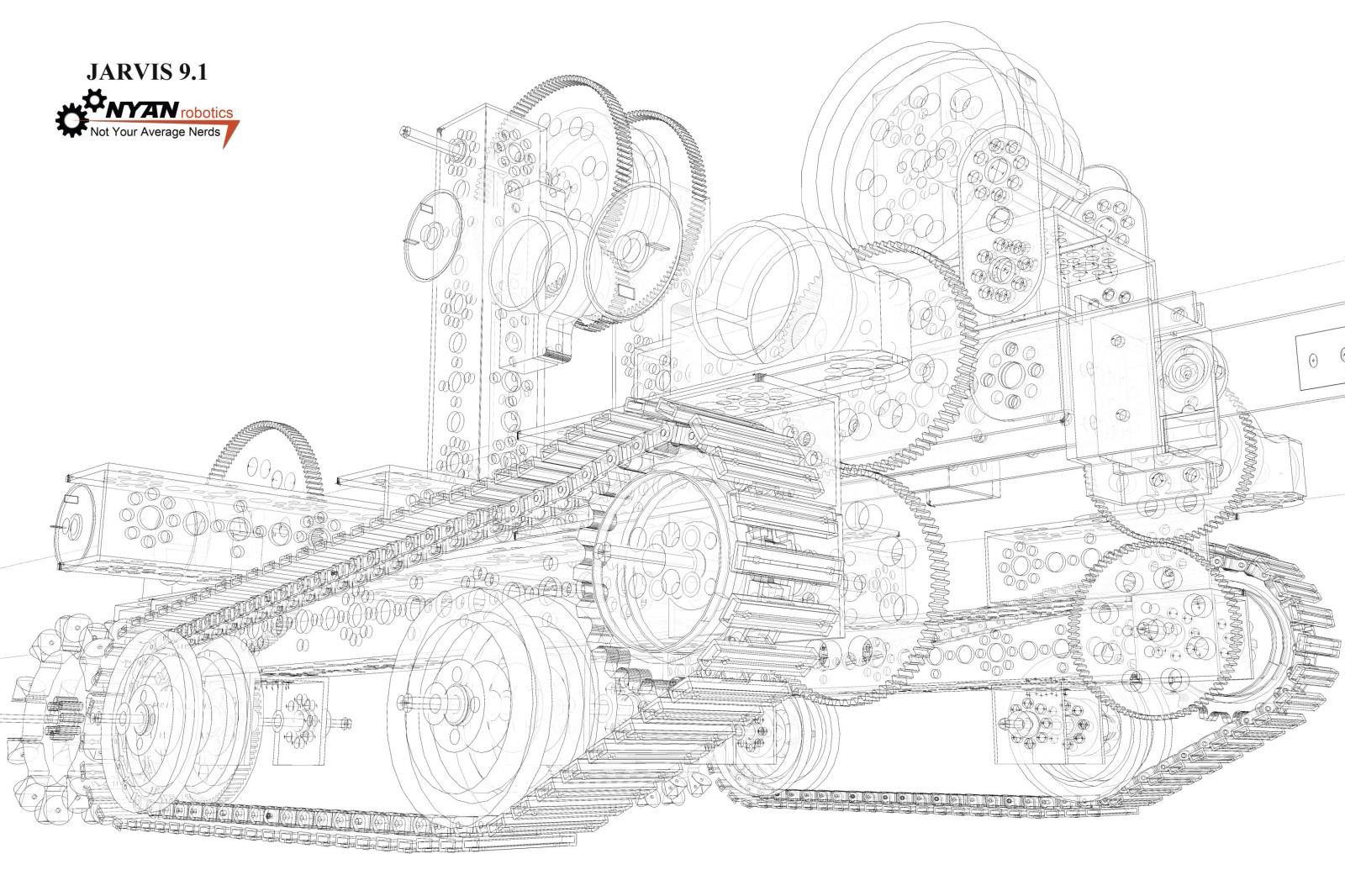

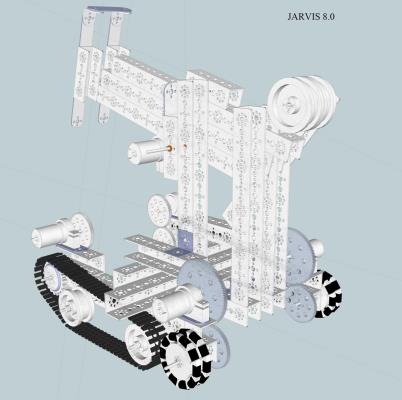

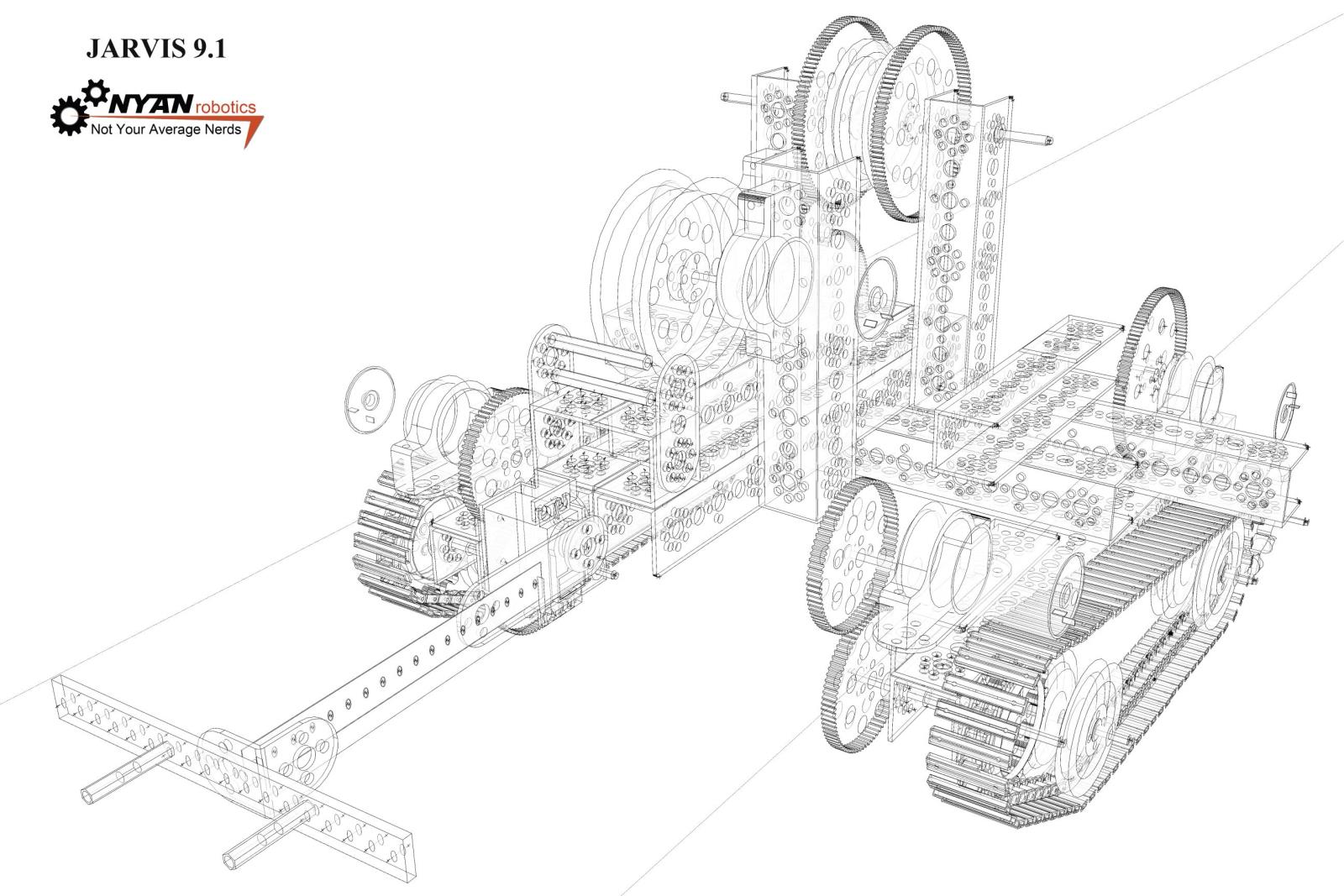

Several 3D models were made to try to capture the essence of the drivetrain being contemplated.

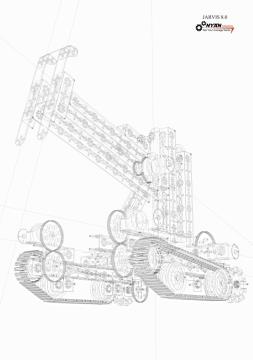

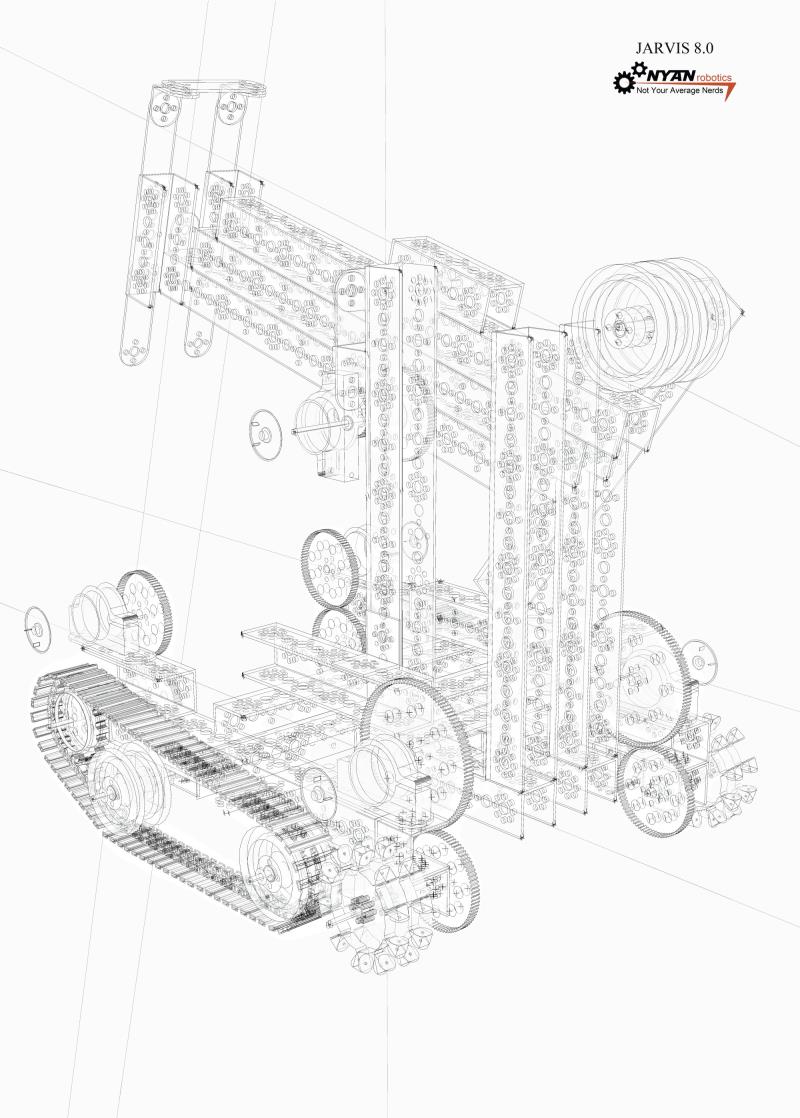

See more engineering drawings and programming details here.

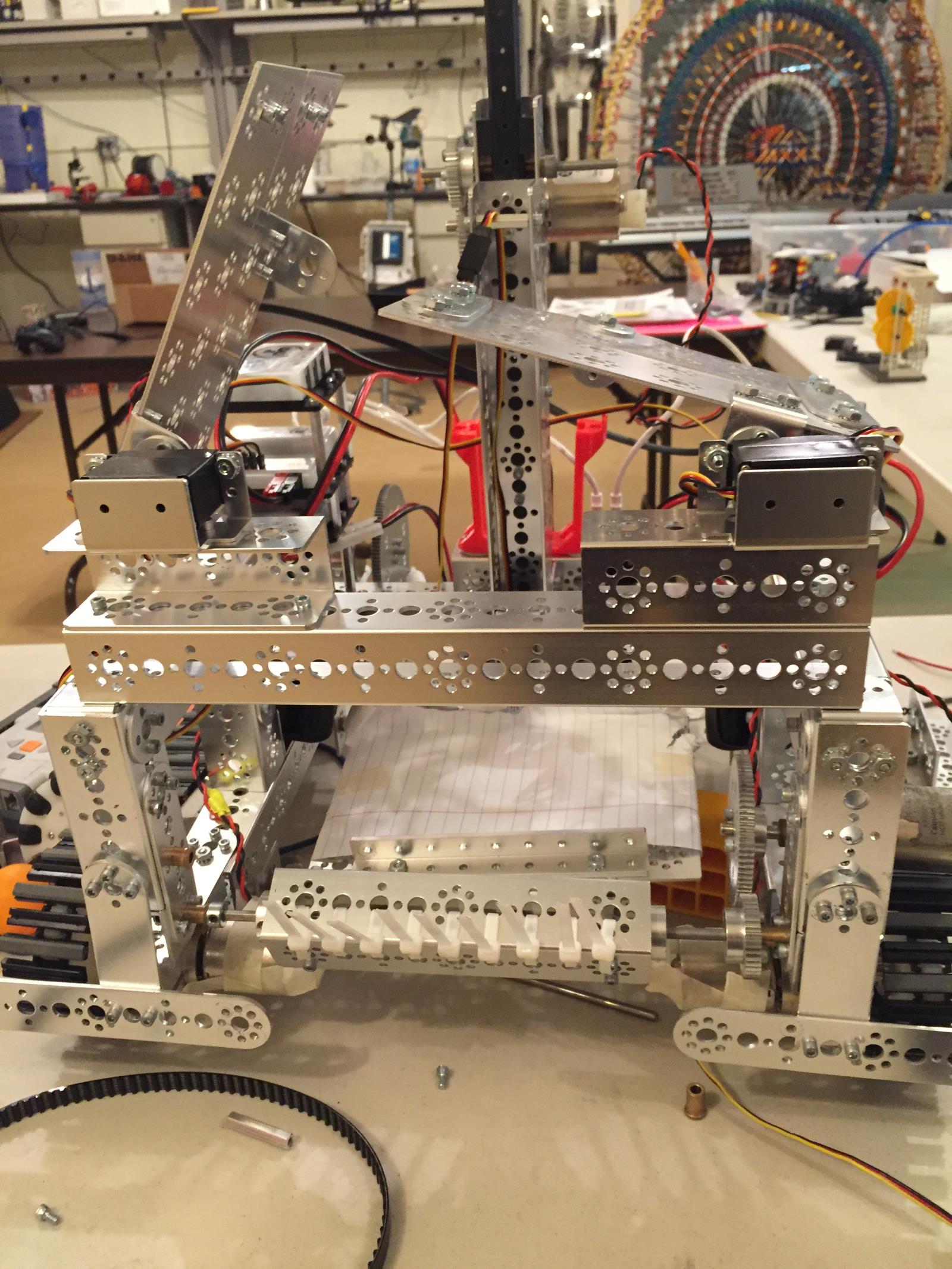

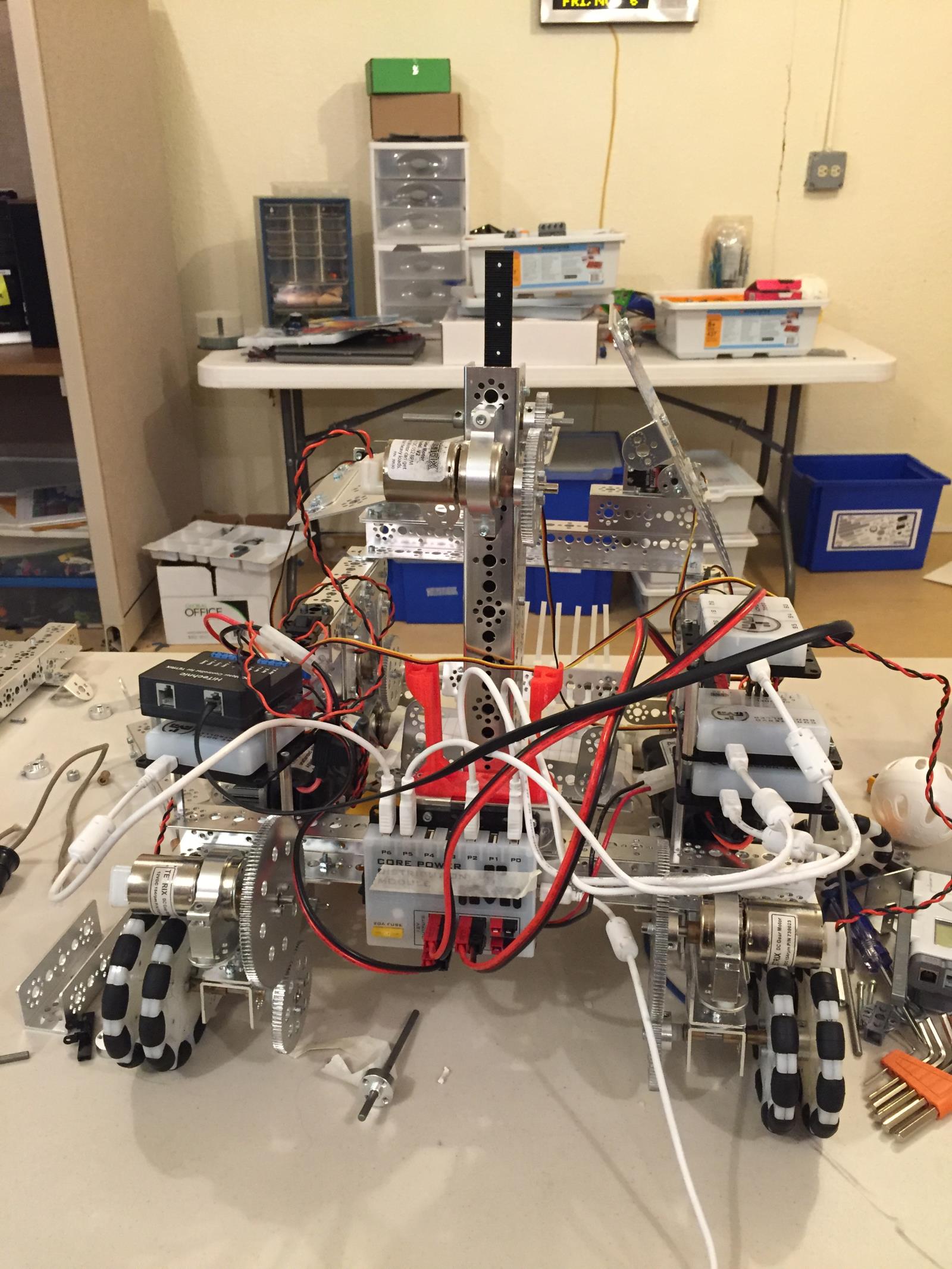

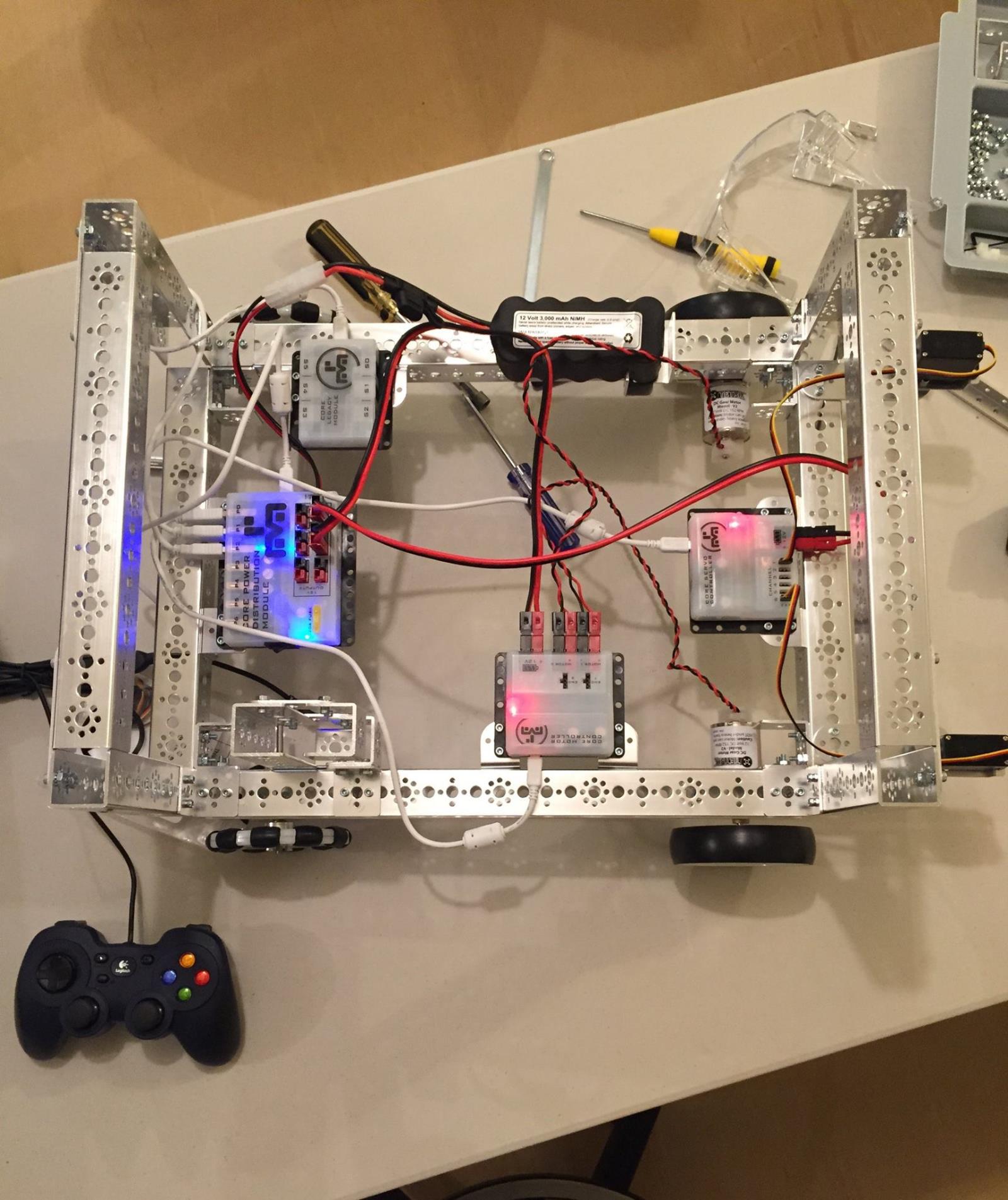

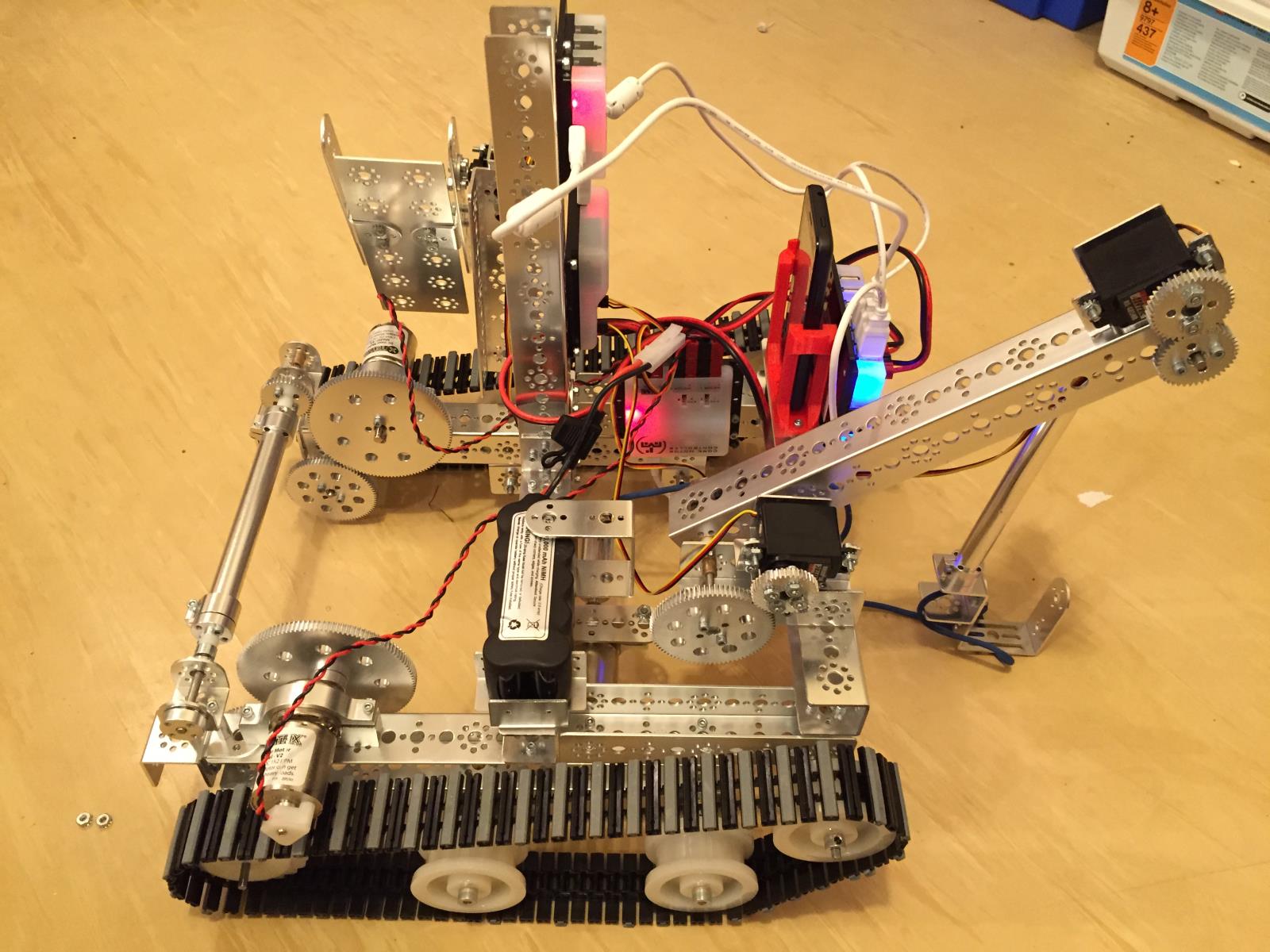

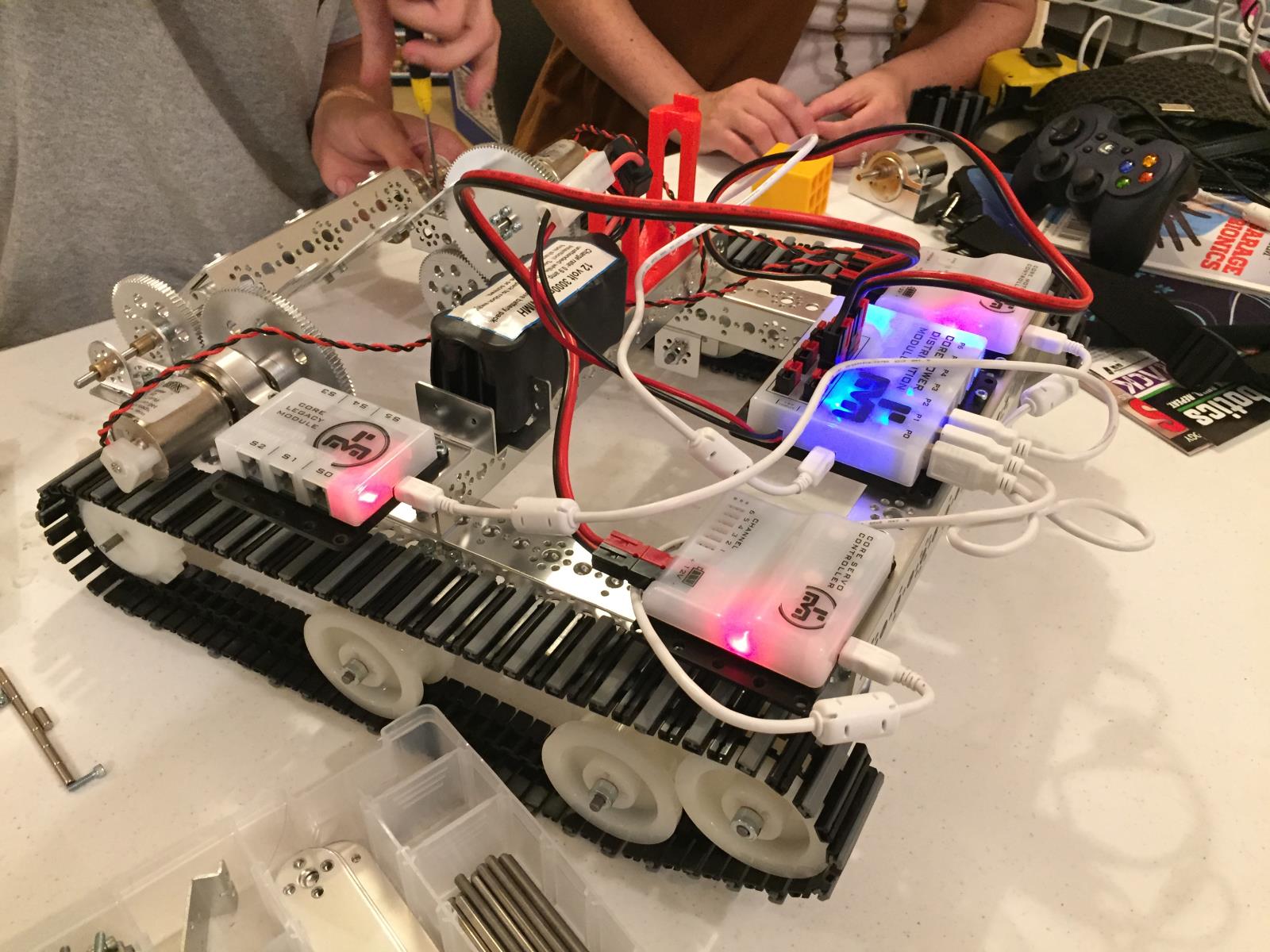

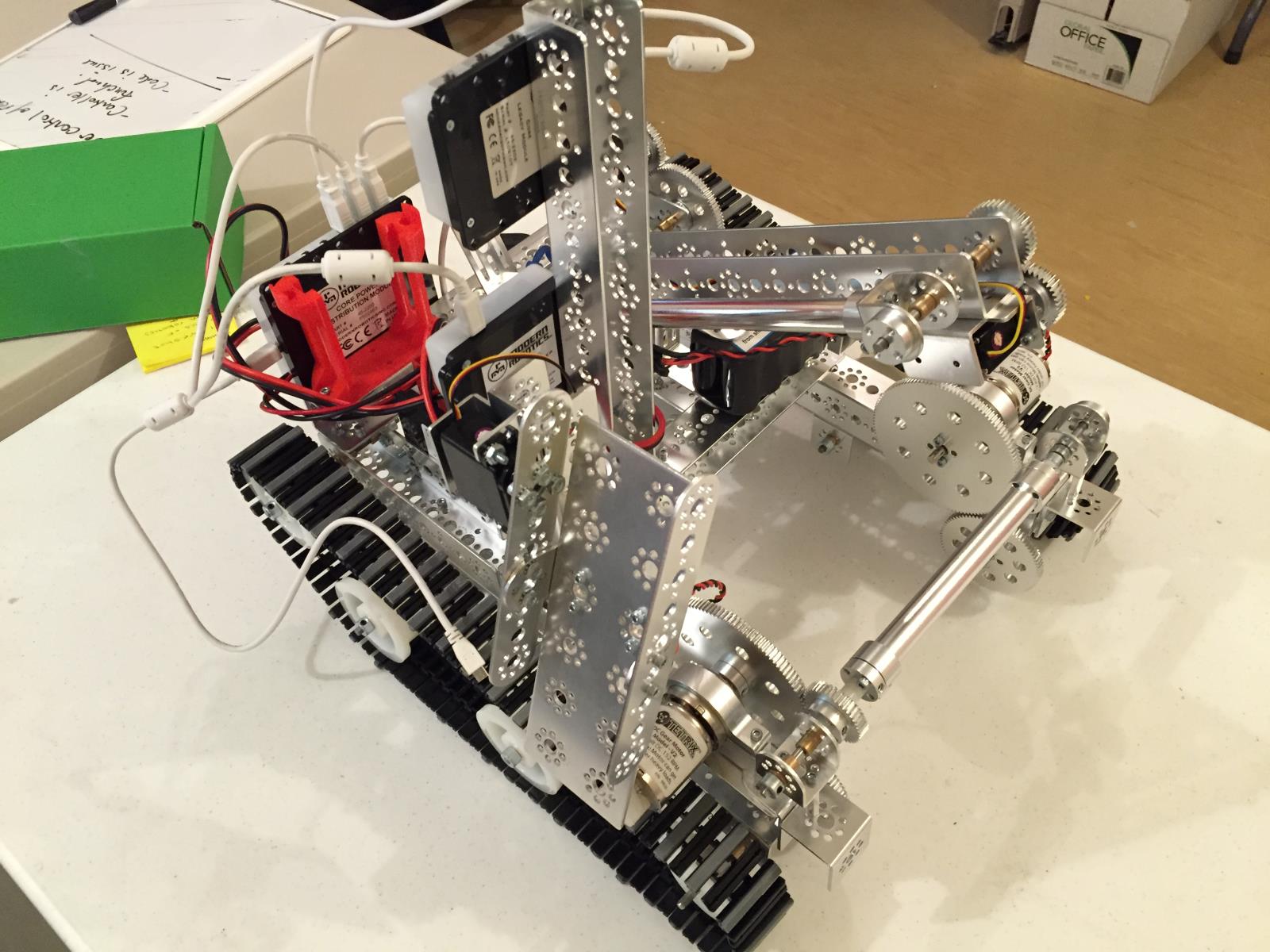

Very basic first pass playaround with the parts
